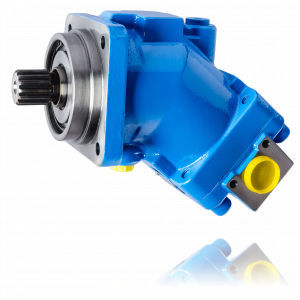

Hydraulic motors are of bent axis design with a 40° angle, they combine high performance and reduced size envelope.

M series piston motors are designed for fixed and mobile applications, and can be used in either closed or open loop systems.

The service pressure of these motors is up to 400 bar continuous and 450 bar peak, maximum rotation speeds of 3400 to 8000 rpm depending on the model.

M motors exist with keyed or splined shaft.

A and B port options are available.

Characteristics and advantages :

high efficiency,
speed sensor and flushing valve as options,
on request : anti-cavitation valve, pressure limiter.

Applications :

construction equipment (for example : transmission, vibro hammer),
fan drive,
forestry machines (mulcher, harvester head…),
agricultural machinery,
heavy winches,
mining equipment,
municipal equipement (mower, sweeper, salt spray spreader…),
defense.

Parameter Name	Parameter Value
Technology	spherical piston
Other characteristics	fixed-displacement open circuit closed circuit
Pressure	400 bar, 450 bar (5,802 psi)
Rotational speed (rpm)	3600 - 8000
Torque (Nm)	28 - 28
Displacement	Max.: 180 cm³ (6.09 US fl oz)Min.: 5 cm³ (0.17 US fl oz)
