1920 * 1080 pixel wide-width and high-frame-rate CMOS
Sufficient illumination, multi-core processor, enable the exceptional performance of reading extremely fast moving barcodes
Multiple light source kits (polarized/atomized/combined light sources) enable flexible configuration of lighting,
Innovative structural design, complete light source kit switching in only seconds!
Industrial barcode reader equipped with a touch screen, which can realize offline configuring and quick knowledge of the device's status
Updated "one-click automatic parameter adjustment" function for faster and better completion of auto-focus and parameters configuration

Details

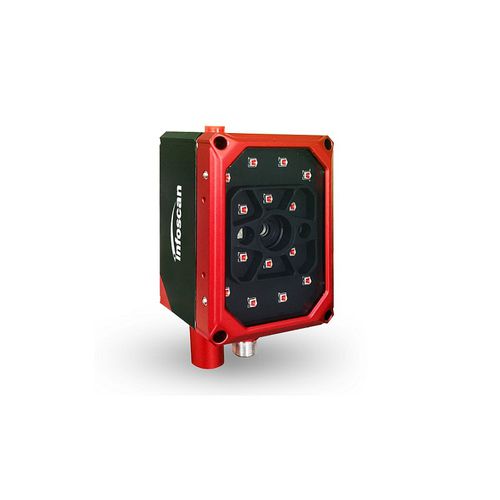

FV2X0 series is a high-performance intelligent barcode reader launched by infoscan in March 2023. It uses 2 megapixel wide-width and high-frame-rate CMOS, high-power lighting sources and liquid lenses with various specifications to address challenging code reading situations such as large field of vision, long-distance and ultra-high-speed. In addition, FV2X0 series industrial barcode reader is equipped with a touch screen that enable users to complete equipment configuration and status acquisition offline through the screen.

Product features

Significantly improvement of collection visual field -
Improve the performance of reading high-speed moving barcodes

1920 * 1080 pixel high-frame-rate CMOS sensor

Adopt wide-width format, the long side pixel value has been increased from 1280 of the last generation to 1920, the field of vision has been improved by 50%

The standard lighting model (FV220) uses 16pcs high-brightness lamp beads; enhanced lighting model (FV260) has been expanded to 28pcs lamp beads

Parameter Name	Parameter Value
Portability	fixed
Type	1D 2D
Applications	for factories
Other characteristics	high-speed long-distance
Measuring distance	Max.: 1,000 mm (39 in)Min.: 50 mm (2 in)
