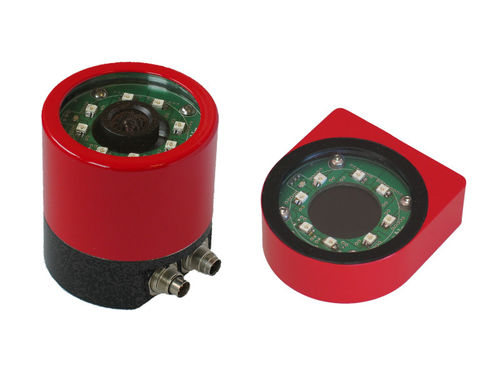

EOPTIS offers a complete hardware/software solution for barcode reading based on an optical head comprising a high-sensitivity digital camera, an integrated white ring illuminator and a high quality miniature lens, in an IP40 to IP67 protection-graded case. Optional external illuminators can be added to obtain the proper illumination pattern on all printing substrates.

Multiple optical heads can be simultaneously driven by one host PC (via USB2.0 link) that runs the software library for hardware management, and is capable of reading several 1D bar codes and 2D matrix codes.

The modular conception of the system architecture ensures high flexibility to the user. It is possible to respond to different needs beyond the bare decoding task (e.g. multiple barcode correlation, selective area reading, barcode cross-check and others) as well as add complex vision-based checks.

This barcode reader offers significant advantages compared to similar systems:

Modular concept: each optical head can be triggered and simultaneously drive multiple cascaded external illuminators. This feature significantly simplifies the integration phase, allowing a faster set-up.
Scalable .dll software library: the software decoding engine is conceived to be straightforward included in Delphi, Visual C++ or other developments tools and to exploit hardware resources available on the host PC, otherwise wasted.
Aluminium or steel case and custom paints are available on request.

Parameter Name	Parameter Value
Portability	fixed
Number of axes	1D 2D
Other characteristics	miniature
