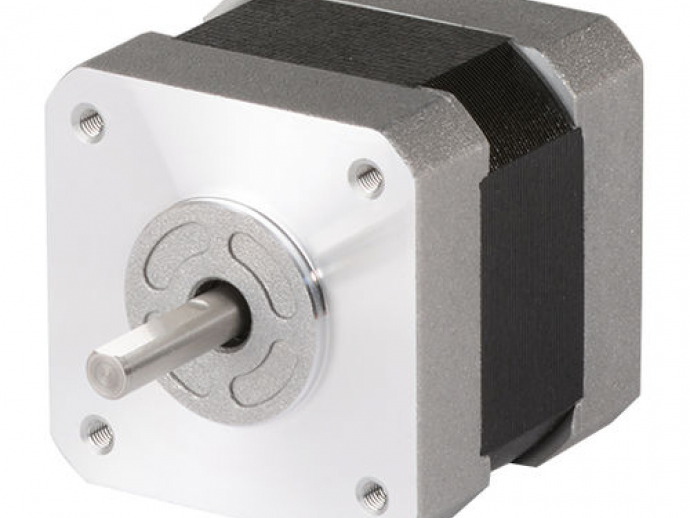

AK Series
5-Phase Stepper Motors (Shaft Type)

The AK series shaft type 5-phase stepper motors are compact and lightweight and offer high-speed, high-accuracy, and high torque motion control. The AK series motors also offer great cost efficiency with its low, economical prices and are available in various frame sizes.

Main features
• Compact and lightweight with high speed, high accuracy, and high torque
• Space-saving design ideal for building compact-sized systems
• Low, economical prices for improved cost efficiency
• Built-in brakes (AK-B Series)
• Brake is released when power is applied to brake wire (AK-B Series)
• Frame sizes
- AK : 24mm, 42mm, 60mm, 85mm
- AK-B : 42mm, 60mm, 85mm

Parameter Name	Parameter Value
AC/DC	DC
Type	five-phase stepper
Voltage (V)	24 - 24
Configuration	with brake compact
Applications	industrial for medical equipment
Other characteristics	motion control high-efficiency high-torque high-speed high-precision
Torque (Nm)	0.13 - 6.18
Diameter (mm)	24 - 42
