Technical data

1. Products Features

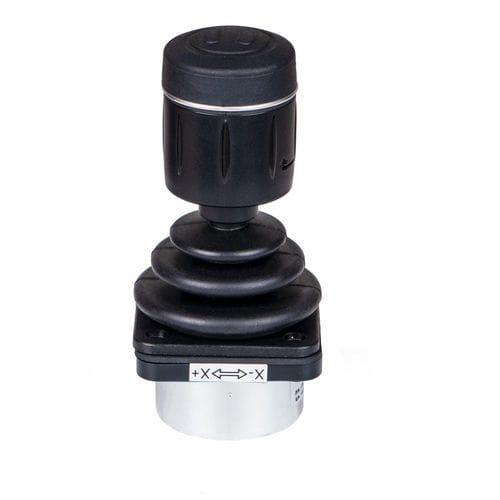

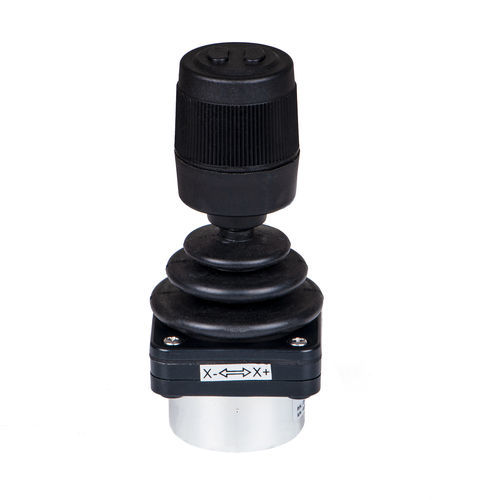

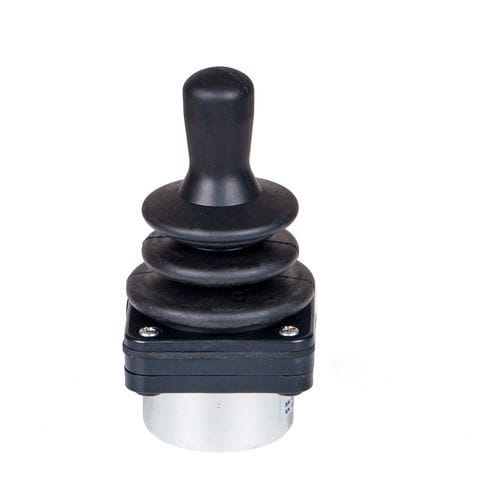

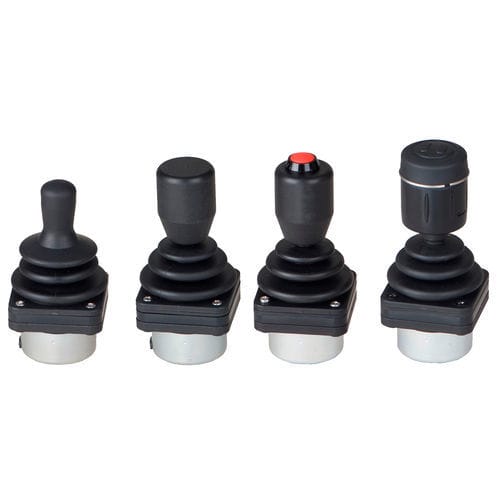

Fingertip-operated, spring return

Non-contacting hall effect technology, high reliability, long service life

Optional third axis combination with switches

Optional output voltage upon requirement

Additional RS232 or USB module

ROHS compliant

2. Market Focus

Video network keyboard

Control panel of medical equipment

CNC machining equipment

Teaching apparatus of industrial robot

3. Technical Specifications

3.1 Mechanical Data

Travel Angle: ±40º (Z axis)

Mechanical life: 5 million cycles (X or Y axis); 2 million cycles (Z axis)

Operating Force: 2.3-6N

Maximum allowable Force: 300N

Weight: 160g

3.2 Electrical Data

Supply Voltage: 5.0±0.5Vdc or 9-32Vdc

Current consumption: 10KΩ

Insulation Resistance: >1000MΩ

EMC: 100V/m



3.3 Environmental Data

Operating Temperature: -25℃～+70℃

Storage Temperature: -40℃～+85℃

Protection Class: IP65（above the panel）

Parameter Name	Parameter Value
Technology	Hall effect single-axis 2-axis 3-axis multi-axis digital opto-electronic
Applications	for remote control medical for off-highway vehicle for CCTV applications
Other characteristics	with dead-man switch with buttons CANopen USB multifunction IP65 lift-lock with ball handle fingertip CAN bus with rocker switch PWM force sensor programmable spring-return SAE J1939 with interlock system
