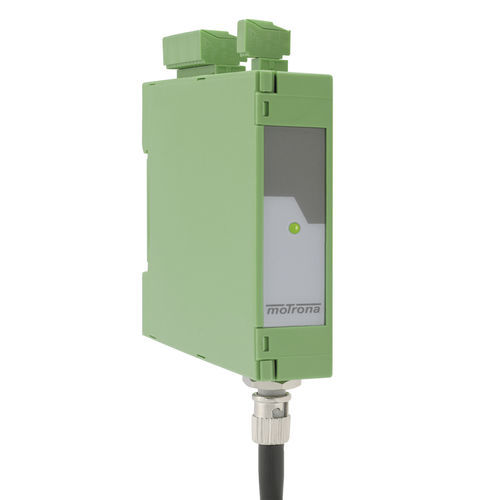

The fiber optic modules of the LW series each consist of a transmitter and a receiver. The LW217 converts SSI signals into light waves and sends them to the LW218 receiver module. This converts the light waves back into absolute values.

LW217 = transmitter
LW218 = receiver

The fiber optic modules LW217 and LW218 have an optical wavelength of 1300 nm and are capable of transmitting signals over a distance of 2000m.

• 1 SSI input / output channel [RS422]
• Input frequency up to 1 MHz
• SSI resolution from 1-99 bits adjustable
• Short conversion times: under 300ns

Parameter Name	Parameter Value
Network	fiber optic
Specifications	compact SSI
