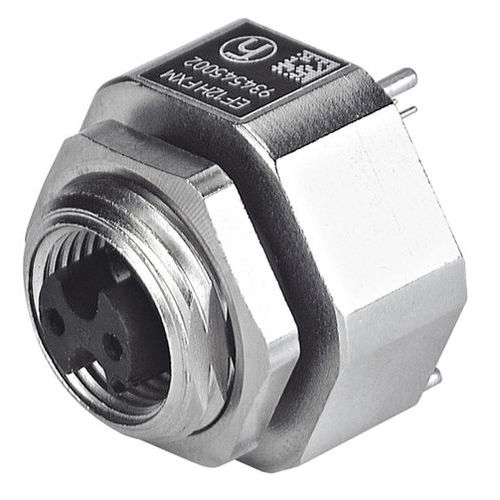

100Base-FX Transceiver microFX for MultiMode application 1310 nm, 125 MBit/s with metal housing, acc. to IEEE 802.3, with FDDI PMD standard; incl. protection cap and mounting screw
Type:EF12H FXM
Order: No.934 545-002
Number of contacts:2 (optical) + 2 (electrical)
Availability:not availableDiagnostics Signal Detect, TX disable led out via pin
Standard ISO/IEC 9314-3, housing: in support of IEC 61076-2-101 (Ed. 1)
Housing Color silver
Technical data
Rated voltage AC/DC 60 V
Rated current 4 A
Wave length 1310 nm
Output level -20 dBm to -40 dBm
Input Level -31 dBm to -14 dBm
Data rate 125 Mbit/s
Data interface PECL
Power supply DC 3.3 V
Current consumption DC 295 mA
Material
Contact material Cu Zn
Contact surface material Au
Contact bearer material PA
Housing material Cu Zn/Ni
O-Ring Viton
Environmental conditions
Protection class (IEC 60529) IP 65 / IP 67 (mated)
Pollution severity 3
Temperature range -40ºC to +85ºC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
for fiber optics
|
| Applications |
for sensors
|
