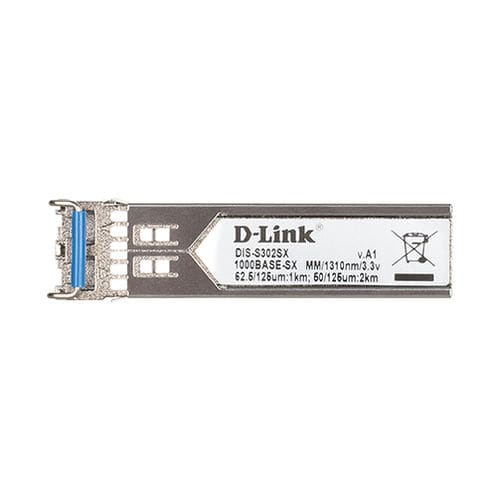

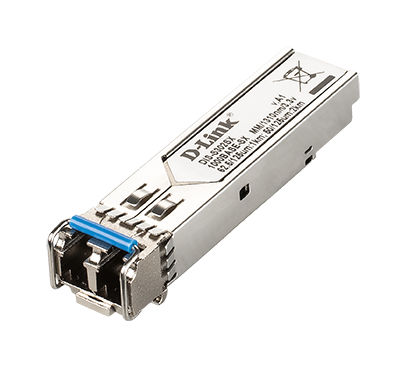

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
up to 2 km
-40 ~ 85°C operating temperature

Features

Hot Pluggable
MSA Compliant
RoHS Compliant
Standard

Compliant Standard

IEEE802.3z
1000BASE-SX
Transceiver Type

SFP
Fiber Media support

Multi-Mode
Distance

Max. Distance or other supported cable type
62.5/125um fiber: 1km
50/125um fiber: 2km
62.5/125um OM1 1km
50/125um OM2 1km
50/125um OM3 2km
50/125um OM4 2km
Speed

1.25Gbps
Interface

Connector

Duplex LC Connector
Direction

Single-direction
Wavelength

1310 nm
Output Optical Power (TX Optical Power)

Max. (dBm) -3dBm
Min. (dBm) -9dBm
Input Optical Power (RX Optical Power)

Max. (dBm) -3dBm
Min. (dBm) -22dBm
Sensitivity (dBm)

-22dBm
Cable Type

Multi-mode 50/125um or 62.5/125um fiber
Operating

Power (V)

3.3V
Max Input Current (mA)

300mA
Power Budget (MIN Power Budget) (dB)

13dB
MAX Power Budget (dB)

19dB
Heat Generated (kJ/h)

2.376 kJ/h
MTBF (hours)

224,167 hours
Physical & Environment

Operation Temperature (°C)

-40-85°C
Storage Temperature (°C)

-40-85°C
Operating Humidity (%)

5% ~ 95%
Storage Humidity (%)

5% ~ 95%
Dimension ( W x D x H)

13.7mm x 55.4mm x 8.5mm
Weight

20g
Bail latch colour

Blue
Certifications

Emission (EMI)

FCC Class B
CE Class B
VCCI Class B
Safety

LVD
EN 60825-1

Parameter Name	Parameter Value
Network	for fiber optics GBIC
Other characteristics	SFP multimode
