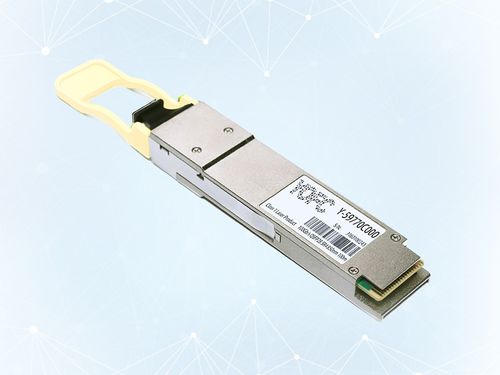

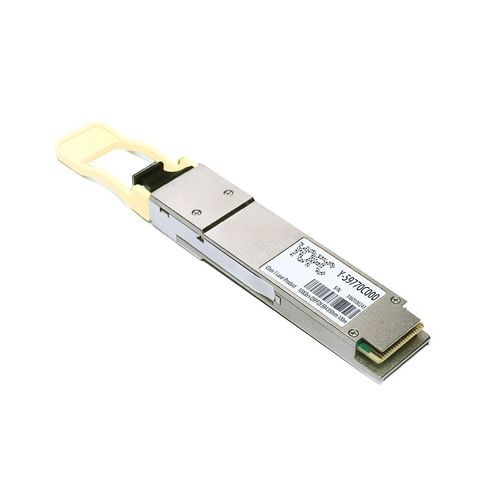

This product is applicable to 100Gb/s MMF link. This module is designed by integrating a 4-channel VCSEL array and a 4-channel PIN photodiode array, and with MPO optical connector. It can realize data transmission within 70m at 103.1Gb/s with OM3 or OM4 MMF fibre, and within 100m at 103.1Gb/s with OM4 MMF fibre. This product conforms to QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4.

100G Ethernet, Metro, SDH/SONET, Data Center and other optical links

Compliant QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4/LR4/ER4, OTN OTU3/OTU4
Hot-pluggable, digital diagnostics functions
4 channels full-duplex
Up to 28Gb/s per channel
Single 3.3V power supply
Meet EMI, ESD
RoHS compliant
Class 1/1M Standard product, Compliant IEC60825-1
Telcordia（bellcore）GR-468-CORE reliability compliant
Operating temperature 0 - 70℃

Parameter Name	Parameter Value
Network	Ethernet for fiber optics CAN
Applications	data transmission for telecom networks
Number of channels	4-channel
Other characteristics	data
