Optical Fibre alignment device: AS98

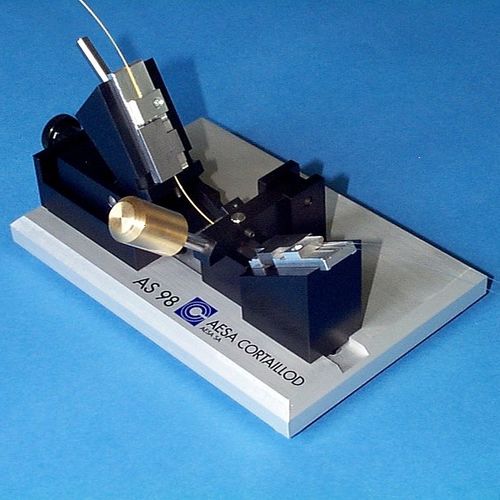

High stability optical fibre alignment device AS98
The easy-to-operate AS98 device allows an accurate positioning of your optical fiber to ensure an optimized stability alignment.
AS98 fibre alignment device was specially designed for shop floor and field use.
It offers an ergonomic working area to perform a highly stable alignment of your optical fibres. Its sturdiness and smart mechanical design ensures a minimum of maintenance and cleaning operations. Compliant with International standards as IEC79+3-xx and IUT G650, AS98 is the perfect simple portable equipment for your technicians.
Main technical characteristics
Mechanical alignment principle without adjustment or optimalization
For any singlemode or multimode telecom fibres with coating diammeter up to 250 ± 15 µm
1 to 2 fibres
Alignment loss < 0.1 dB for singlemode fibres (CCITT)
Losses stability < ± 0.01 dB
Stability guarantee in less than 3 minutes
Compliant with IEC 793-xx and IUT G650
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for fiber optics
|
