About

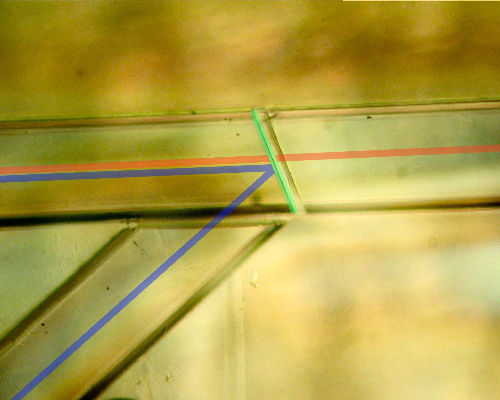

SEDI-ATI’s multimode wavelength division multiplexers are manufactured using a proprietary process based on a dichroic filter directly deposited onto the optical fiber.
From 50 μm to 400 μm fibers,
Bespoke dichroic filter,
UV, VIS, IR wavelengths,
Bi-directional,
Compact,
Robust,
Reliable,
Lightweight,
Custom configurations.
This unique manufacturing method ensures a robust construction allowing a bi-directional or dual transmission on a single multimode fiber.

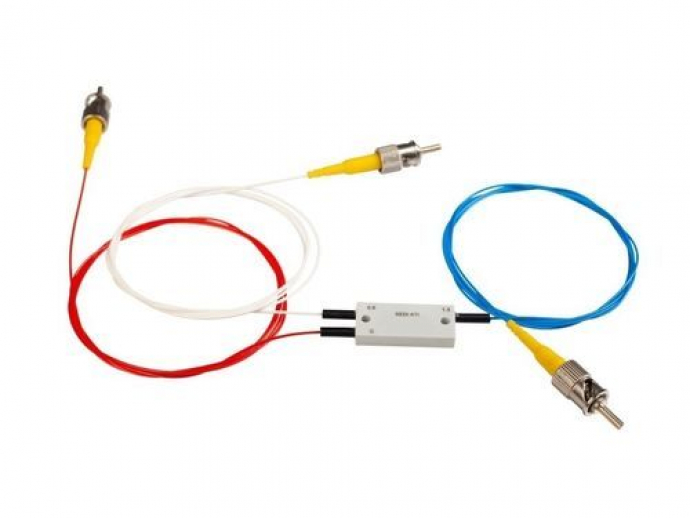

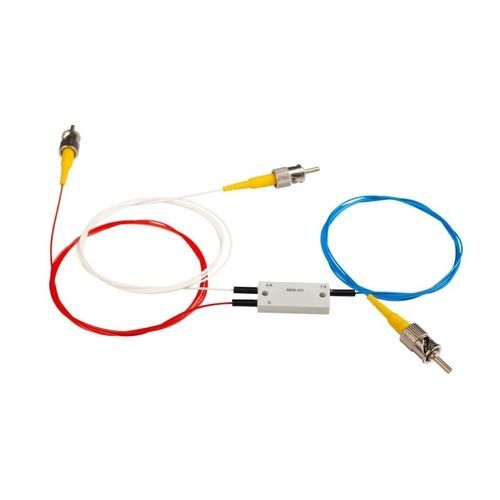

The CP-MXC series can be made with a wide variety of optical fibers including graded-index fibers and large core step-index fibers up to 400 μm core diameter.
The dichroic filter is fully customizable for a variety of UV, VIS or IR applications.
The CP-MXC is particularly suitable for sensing and fluorescence applications. It can also be adapted to operate in a wider temperature range to meet the requirements for geophysics or space for instance.
We offer standard packages in plastic material and can also propose a ruggedized package upon request: resistance to shocks, vibrations, accelerations, outgassing, and power.
Our multimode WDMs can be terminated with ST, SC, FC, or SMA connectors. Other connectors are available upon request.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
module
|
| Options |
|
