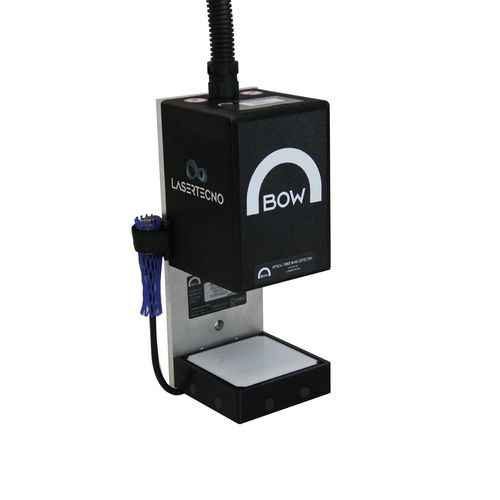

Optical instrument for controlling fiber optic stampings.
Maximum controllable optical fiber speed ; up to 4000 mt/min
Optimum control for optical fibers even below 200 microns.
BOW - Optical Fiber Band Detection can check : absence of mark/ring, excess of mark/ring,changes in length of mark/ring, ink stains on optical fiber
Intuitive Livestream of the existing mark that allows the operator an easy setup and start of the line without effort.
Ability to report the square footage in which a marking error or absence of ringing is found.
Multiple CAQ software can be connected to send Analysis Reports.
Internal/external database allows the operator to recall recipes for easy configuration.
No user influence on predefined optical focus and optimized, intelligentand homogeneous illumination.
Green, yellow, orange and red warning lights for nonconformities.
Easy connection with external devices via Ethernet IP.
Application Area :
Design and study of camera-based system for detection of marks/prints on fiber optic surface.

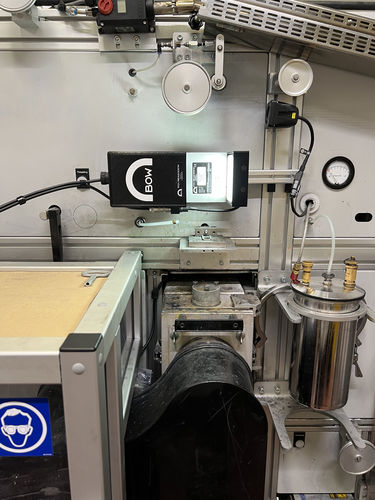

Device designed for production lines.
Gray frames change color (green, yellow, orange, red) depending on marking status for immediate recognition.
Live stream represents the marking being analyzed.
Counting of errors found.
Alarms, lights or buzzers that integrate with the device can also be used.

Parameter Name	Parameter Value
Technology	camera optical non-contact video vision
Operational mode	automatic, manual
Applications	for production for cables for wires for fiber optic marking
Type	for quality control for defect detection measurement surface defect glass surface video sizing
Other characteristics	fast custom in-line LED
