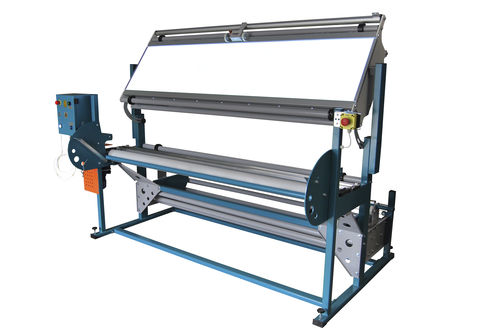

Rewinding-inspection machine with backlight and more powerful winding unit (from the roll cradle onto the tube), and length measurement device.

Key features:

- Rewinding / inspection machines with backlighting screen provide fast, easy quality control and measure fabric length.
- Machines can have a built-in lay manual (version /R) or semi-automatic (version /A) end-cutter for increased efficiency in the workplace.
- A perfect choice for all textile manufacturers and businesses that deal with any kind of fabric.
- The machine winds fabric from a roll placed inside the cradle on a core placed on a winding shaft.
- High winding speed (50 m/min or 60 m/min).
- Mechanical counter (yards or meters).
- Easy fabric roll installation.
- Frame made of powder-coated steel.

Available models:

PP-3S Rewinding-inspection machine with backlight and more powerful winding unit (from the roll cradle onto the tube), and length measurement device.
PP-3S/R Additionally equipped with manual fabric end cutter OT-1/R.
PP-3S/A Additionally equipped with semi-automatic fabric end cutter OT-1/A.

Specifications:

Model: PP-3S
Maximum width of fabric roll: 190 cm (74,80")
Maximum roll diameter: 50 cm (19,69")
Maximum rewindable weight of roll: 70[kg]
Voltage: 230[V]
Wattage: 0,55[kW]
Maximum winding speed: 50-60 m/min
Screen size: 200 x 50 cm (78.74" x 19.68")
Screen: Yes
Сounter for yards or meters: Yes
Cradle for roll: Yes
