About
The Dino-Eye is a range of digital eyepiece cameras. You can replace the ocular (eyepiece) of regular microscopes with the Dino-Eye which turns the regular microscope into a digital microscope. The AM4025X has different adapters to fit microscopes with 23, 30 or 30,5 mm eyepieces. The DinoCapture software is bundled with the product.

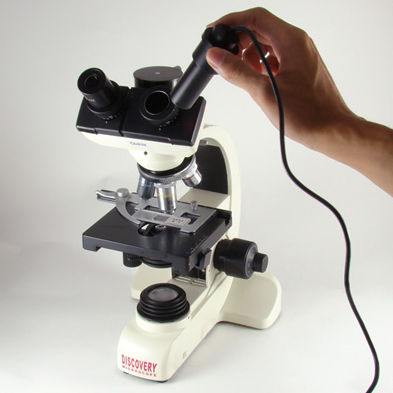

The large field of view allows you to capture more details with one image. You can replace one of the eyepieces of the microscope by the Dino-Eye camera which has a diameter of 23mm, or you can use one of the provided adapters of 30mm or 30,5mm to make it fit.
Additionally you can use the c-mount thread that is included with the 30,5mm adapter to be able to connect the DinoEye to the c-mount adapter (not included) on the Trinocular tube of the microscope. The AM4025X eyepiece camera will therefore fit to almost all microscope brands and models available. The AM4025X comes with DinoCapture software for Windows and DinoXcope software for MAC, which includes measurement, annotation, video and time-lapse functions.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for microscopes
|
| Technology |
digital
|
| Function |
spark optical emission
|
| Spectrum |
visible
|
| Sensor |
CMOS
|
| Interface |
USB 2.0
|
| Other characteristics |
eyepiece type
|
