MS -EE xdllC Series

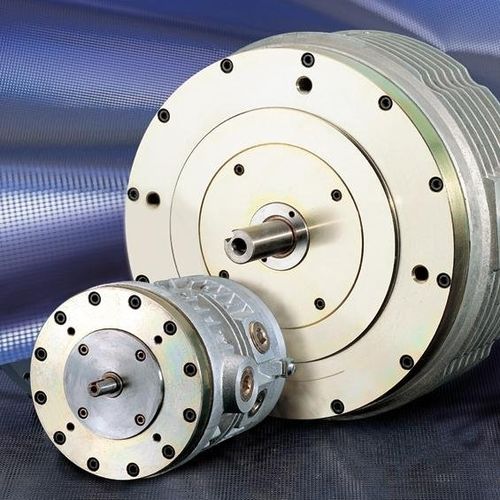

EExdIIC Series are axial air-gap servomotors housed in an enclosure into which gas can gain access: the gas can be ignited within the enclosure without the explosion damaging the enclosure or being transmitted to any flammable atmosphere external to the enclosure. These motors comply with the requirements for Apparatus Group IIC specified in EN 50 018 (1977) + A1 to 3 and EN 50 014 (1977) + A1 to 5.
The classification referred to an ambient temperature of 70ºC is:

T5 for
MS-2 / MS-12 / MS-22
MA-3 / MA-20 / MA-30
T3 for
MS-4 / MS-6 / MS-8
MA-6 / MA-10
D.C. and A.C. “brushless” motors are included in the EExdIIC Series, incorporating options of tachometer, resolver and parking brake fitted internally.

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Protection class	ATEX explosion-proof
Applications	parking brake
Power (W)	190.3 - 190.3 573 - 573
Torque (Nm)	0.6 - 49.14
Rotational speed (rpm)	0 - 7000
