Product Feature:

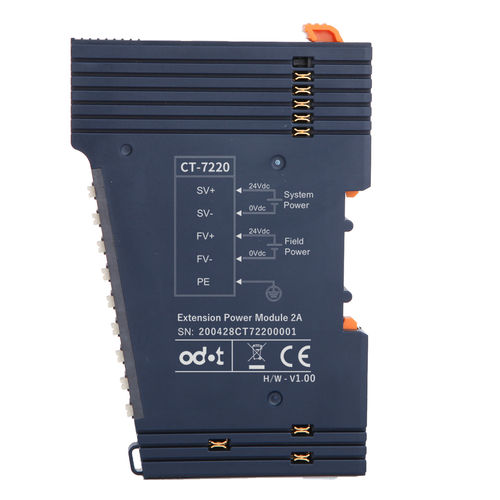

CT-7220 Power Supply Extension Module 5V/2A

◆ System Power and Field Power Extension

◆ System Power Output 2A@5VDC

◆ Field Power Extension 8A Current ◆Take no module channel(replace CT-7221)

General parameters
System Power: Nominal 24Vdc
Range: 9-36Vdc
Protection: overcurrent protection, anti-reverse connection protection
Module Internal Power Consumption: 20mA@5VDC
Internal Bus Supply Current : Max:2.0A@5VDC
Isolation: System Power to Field Power Isolation
Field Power : Power Supply22~28V（Nominal:24Vdc）
Protection: anti-reverse connection protection
Field Power Supply Current: Max. DC 8A

Environment Specification
Operational Temperature : -40~85℃
Operational Humidity: 5%~95% RH(No Condensation)
Protection Class: IP20
