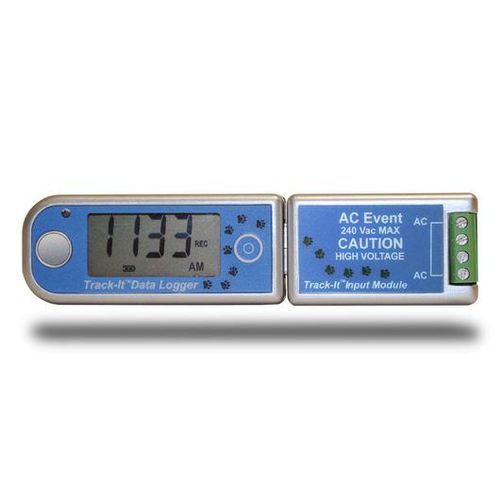

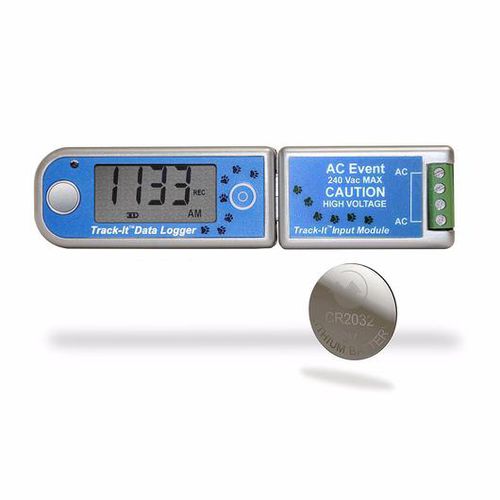

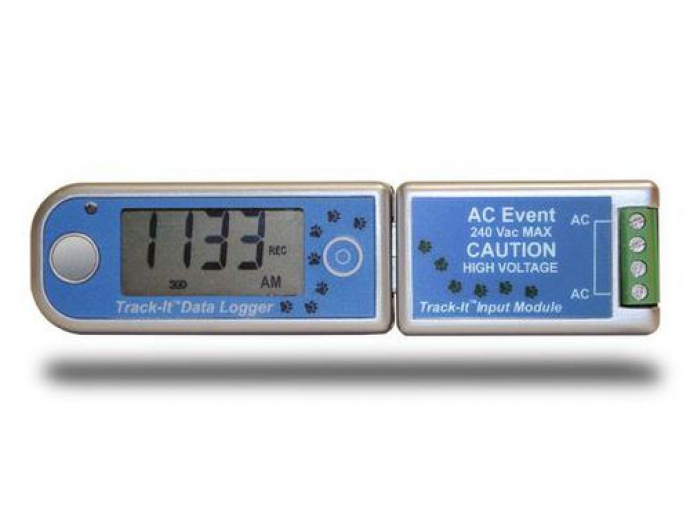

The Track-It™ AC Event Data Logger is a battery-powered, compact data logger that records up to 64,000 on/off cycles. Use the Track-It AC Event Logger to monitor cycle patterns of pumps, blowers, and other electrical equipment powered by 120 or 240 V ac.

The Track-It AC Event Data Logger is a battery-powered, compact data logger that records up to 64,000 on/off cycles. Use the Track-It™ AC Event Logger to monitor cycle patterns of pumps, blowers, and other electrical equipment powered by 120 or 240 V ac. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours or can be set to store a sample at every event.

The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery. The Track-It AC Event Logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat vs. issues. The information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. The multicolor LED indicator notifies the user of alarms or general activity.

Typical Uses

AC Motor efficiency studies
Predictive maintenance
Monitor lead/lag pump cycles
AC motor run times

Parameter Name	Parameter Value
Type	event
Applications	data logger
