Description:

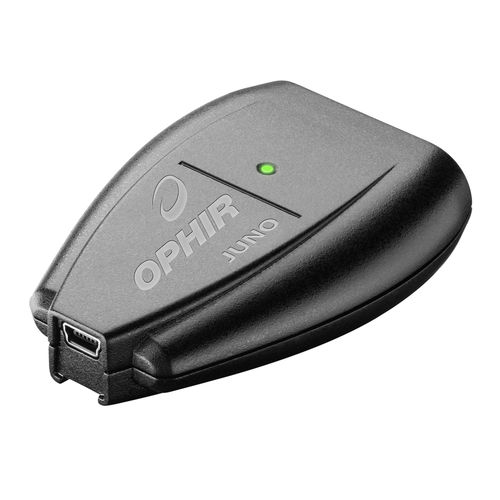

Virtual laser power meter - From sensor to interface to PC - no power source needed
Plug and play with all standard Ophir smart sensors
Use with StarViewer free Android app to turn your smartphone / tablet into a power meter
Record every energy pulse at up to 10 KHz
Log power and energy, average, statistics, histograms and more with included StarLab application
New: Pulsed Power measurements with Thermopile sensors
New: Low Frequency Power on Photodiode sensors - power measurement based on pulse cycle (for VCSEL)
System Integrator Tools included: LabVIEW VIs, COM Object Interface
Very compact - is just an extension of the smart plug
Specification
Thermal Sensors: Yes
Photodiode Sensors: Yes
Pyroelectric Sensors: Yes
BeamTrack Sensors: Yes
Statistics: Yes
Analog Out: No
Communication: USB
Trigger Input & Output: No
Power Supply: USB bus powered
Ethernet: N/A
RS232: N/A
GPIB: N/A
USB: 10,000Hz
Bluetooth: N/A
On-Board Data Storage: No
Automation Interface: Yes
Labview VI's: Yes
Compliance: CE, China RoHS
