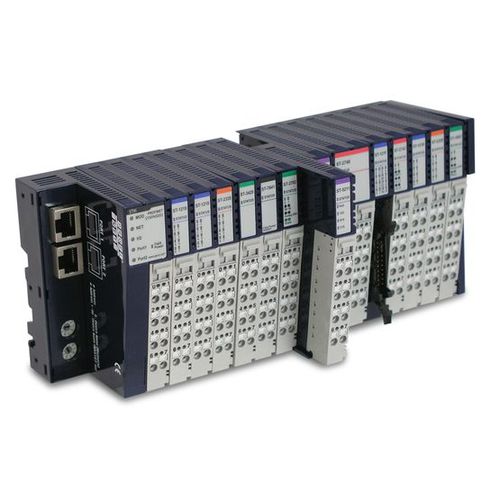

A compact and distributed solution, RSTi is easy to configure, manage and upgrade. With Ethernet-based RSTi I/O, high-speed communications are enhanced to facilitate the massive amounts of data that your devices generate. RSTi I/O unlocks the continuity, connectivity, and collaboration for your control systems.

Features

Ethernet-based Slice I/O Delivers High Performance and Flexibility
Compact, distributed I/O delivers long-life
Easy to configure, manage and upgrade

Specifications

Input Count, Type & Speed
4 Point, Positive Logic; 3.0mS

Supply Voltage and On/Off Voltage
48VDC; Range 34~60VDC; On >43VDC; Off <20VDC

Current Consumption
35mA @ 5VDC

Approvals & Standards Ordinary Locations
UL 508, equivalent to CSA C22.2 No 142M1987 standard

Approvals & Standards Hazardous Locations
Class I, Div. 2, Groups A, B, C, D

Parameter Name	Parameter Value
Bus	Ethernet
Type	distributed
Other characteristics	compact
