About
The SITOP power supply system includes the basic SITOP PSU8600 units, the SITOP CNX8600 expansion units, the SITOP BUF8600 buffer modules, and the SITOP UPS8600 UPS module with BAT8600 battery modules.
The modular system toolbox can be fully integrated into automation landscapes and the Totally Integrated Automation Portal (TIA Portal). Communication via the Ethernet/PROFINET or OPC UA interface is easy. In addition to its operating and monitoring processes, you can use the SITOP Manager to set parameters. Use the integrated web server for remote access. A new basic device now also allows integration into EtherNet/IP networks, which are mainly used in the North American market.
More outputs for more flexibility

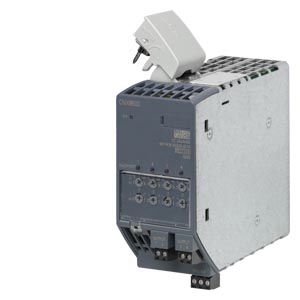

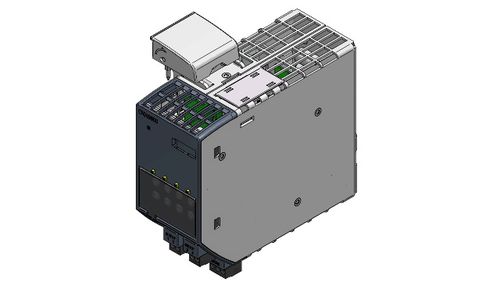

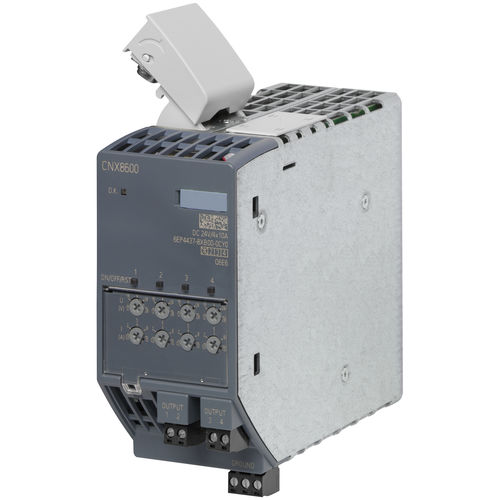

The expansion modules can be used to expand the base units with up to 32 additional, selectively monitored outputs. Connect them to the top of the modules using the System Clip Link, a connector for system data and power supply, with no wiring overheads.
Simple integration into the automation
via Industrial Ethernet/PROFINET in TIA Portal, STEP 7, and WinCC, or via OPC UA into vendor-independent networks.
Highly flexible
thanks to flexibly adjustable output voltages and integrated selectivity.
Saves time
with the modular system toolbox – expandable using “System Clip Link.”
High plant availability
thanks to comprehensive diagnostic options for predictive maintenance.
Highlights
The SITOP PSU8600 power supply system
Seamless integration directly into the automation, and maximum flexibility thanks to the practical system toolbox.
