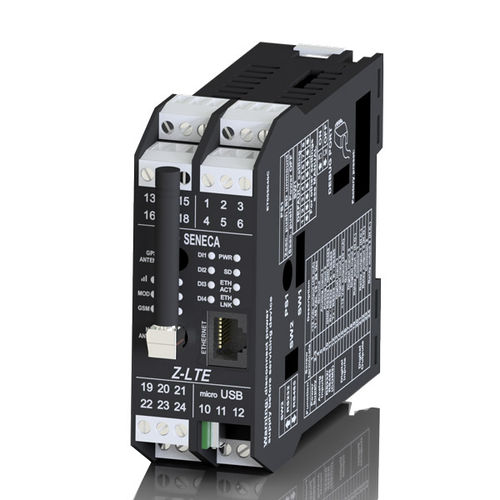

Z-LTE is the new top-of-the-range SENECA datalogger that allows answering the growing requirements of data acquisition, analysis in real-time and integration with IT systems existing in automation and system/process monitoring. In line with the new productivity and communication models of Industry 4.0 and Internet of Things, it is characterized by a 4G LTE World-Wide high-performance modem, GPS receiver, 4 integrated communication ports (1 Ethernet, 1 RS232/RS485, 1 RS485, 1 MicroUSB), 8 integrated I/O channels (4DI/meters/totalizers, 2AI, 2DO), further improved power supply range, voice alarms/audio controls with DTMF tones and the support of Ftp, Smtp, Smtps, HTTP rest, HTTPS, ModBUS RTU, ModBUS TCP-IP and SMS communication protocols.

Configurable as Master unit of the SENECA Z-PC series I/O distributed system, Z-LTE offers maximum opening towards the outside and third parties (PLC, HMI) thanks to the technology standards it complies with. This unit supports different types of SIM cards and has an 8MB Flash memory, a slot for microSD expandable up to 32GB and a multi-tasking real-time operating system. Like all SENECA advanced dataloggers, Z-LTE has fitted also with a built-in UPS that allows an operating autonomy of up to 1 hour in case of lack of primary power supply. This unit guarantees open and flexible programming, thanks to a dedicated environment for the development of control logic (SeAL), an integrated Web Server, a mobile app SENECA SMS (iOS/Android) for the direct management of controls via SMS and a data import/display tool (Log Factory).

Parameter Name	Parameter Value
Connector type	UMTS, LTE, 4G, Ethernet, Modbus
Applications	for monitoring for electric power meters for electrical networks GPS
Other characteristics	intelligent modular
