About

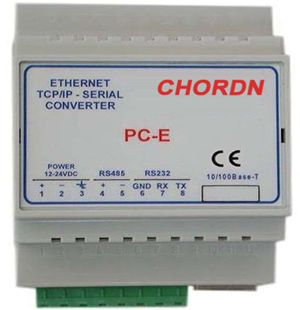

This type of Ethernet converter / Gateway is capable to link any serial (RS-232 or RS485) devices to your computer network via Ethernet for access control or remote control and monitoring purposes.
The families of Networking products cover GSM controller, wireless Ethernet converter (also called wireless Ethernet adapter, wireless Ethernet bridge, wireless Ethernet), Ethernet converter, RS-485 to RS-232 converter, and USB converter.
FEATURES
Serial to Ethernet communication
DIN Rail/Panel Mount
COM1: RS232/RS485, RJ45 for Ethernet connectivity
Application: Connects IO modules, controllers, HMI with Ethernet Network
Function: Transparent data link or Gateway to convert Modbus RTU to Modbus TCP messages
Support Multiple sockets enables up to 4 Masters to communicate with slaves connected to PC-E converter
Web server for Configuration
SPECIFICATIONS
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
RS485, 2 Wire Multi drop twisted pair
Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200
Communication Settings:
Data Bits: 5, 6, 7, 8
Parity None, Even, Odd
Stop Bits 1, 2.
Operating Temperature: -10°C to + 50°C
Storage Temperature: -40°C to 85°C
Connectors: Power and Communication: 8 way screw connector
Protection class: IP20
Humidity: Up to 95% non-condensing
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Bus |
Ethernet, serial, RS-232, RS-485, Modbus RTU, Modbus TCP
|
| Other characteristics |
|
