The Most Powerful Motion Controller and
EtherCAT® Network Manager
Up to 64 fully synchronized axes
Up to 5KHz rate of profile generation and EtherCAT cycle
network failure detection and recovery with ring topology
Up to 1GbE Ethernet host communication
Open Architecture - ACS’ and other vendor’s EtherCAT devices, drives and I/O
Comprehensive set of support tools for EtherCAT Network setup, axis tuning, application development, and diagnostics

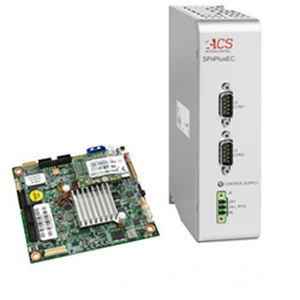

Available in board level format for table top applications with limited space
ACS’ SPiiPlusEC is a state of the art line of Motion controllers and EtherCAT master.
It is specifically designed to extend the capabilities of the SPiiPlus line of controllers and EtherCAT master, to address the needs of modern machinery for cost effective high performance multi-axis, scalable and distributed control of motion centric applications. The SPiiPlusEC open architecture operates in conjunction with ACS’ line of EtherCAT servo and step motor drives and I/Os modules, as well as with any certified third party EtherCAT module that complies with CAN over EtherCAT (CoE) protocol. The unique optional feature increases machines’ uptime using ring topology based redundancy to continue operation upon a network failure.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Number of axes |
multi-axis
|
| Signal type |
EtherCAT
|
| Product applications |
|
