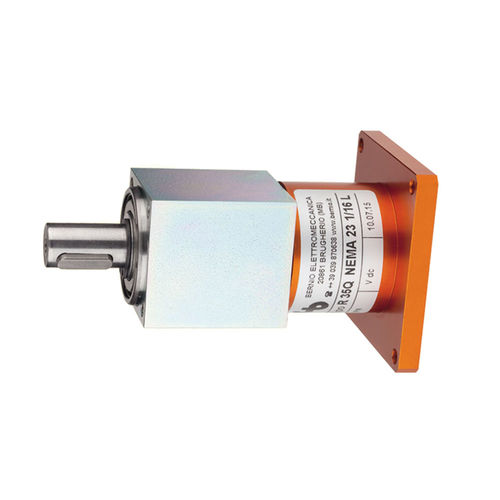

Epicicloidal reduction gearbox with a zinc plated steel frame and a aluminium flange.
Output shaft is supported by two screened bearings. Max speed in the reduction gear 5000 R.P.M. advised speed 3000 R.P.M.

Permanent greasing.

Right to be connected with Nema 17 and Nema 23 motors.

Input shaft ø 5-6-6.35-8 x 20-21 mm

Max forces which can act on the output shaft: Axial 250 N Radial 400 N on the extremity of output shaft.

Parameter Name	Parameter Value
Type	epicyclic
Shaft orientation	coaxial
Torque (Nm)	1 - 5 5 - 10
Shaft configuration	solid-shaft
Other characteristics	with flange flange NEMA 17 NEMA 23 for motors
Rotational speed (rpm)	3000 - 5000
