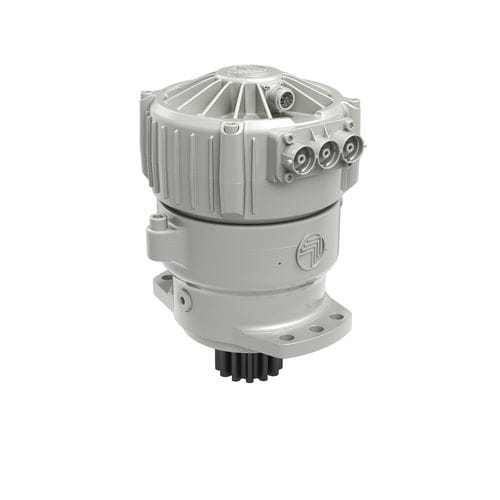

700TE Series Swing drive for electric mini-excavators

Description:
The compactness of Bonfiglioli slew and track drives for 1 to 6 ton mini-excavators ensure the direct replacement of hydraulic gearmotors. High performance, including high torque in a compact space, is one of our portfolio’s key benefits. The use of electric drives grants higher efficiency reducing the TCO and easier maintenance. These solutions allow the machine to be operated inside enclosed environments with lower noise and no polluting emissions compared to traditional mini-excavators. Current emission regulations applied to the automotive industry are likely to be scaled up to heavy duty applications over the medium term. In fact, heavy duty vehicle manufacturers are eagerly seeking improvements in efficiency and are looking for solutions that can increase productivity and reduce the total cost of ownership for the end-user.

Key features:

Planetary type
Coaxial axis orientation
Torque up to 10kNm
Excavator rotation applications from 2 to 20 ton
Other features with compact electric motor from 4 to 55kW
Rotation speed to the pinion up to 75 rpm

Parameter Name	Parameter Value
Type	epicyclic
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000
Performance	high-performance
Applications	for vehicles for automobiles
Other characteristics	compact for electric motors
Rotational speed (rpm)	75 - 75
Power (W)	4000 - 55000
