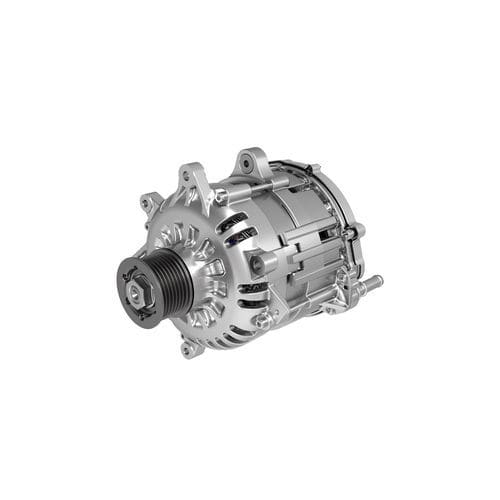

The 48V Belt Driven Starter Generator system has been developed for cost-efficient mass hybridization. Functions such as advanced stop-start, coasting and electric boost can save up to 10% of CO₂ emissions. In a mild-hybrid application the 48 Volt electric motor replaces the 12 Volt alternator and is directly mounted to the engine via a belt. Vitesco Technologies' BSG system consists of an electric motor with integrated inverter.

FACTS & BENEFITS

Hybrid-cooled (air-cooled e-machine, water-cooled inverter) BSG incl. Inverter
Permanent magnet synchronous reluctance machine, 6 phases​
Generates CO₂ benefits and drivability improvements
No service required
IP2X / IP6K9K compliant

TECHNICAL INFORMATION

Start torque: 60 Nm
Peak Power: 15 kW in generator mode
Weight: ~10 kg
Ambient temperature: -40°C up to +105°C
Dim (w/o pulley): L: 165 mm / Diam: 155 mm
Functional Safety: ASIL-B

Parameter Name	Parameter Value
Type	engine
Electrical characteristics	synchronous
Product applications	for vehicles generator
Power (W)	15000 - 15000
