Endoscope light source LED-R

About

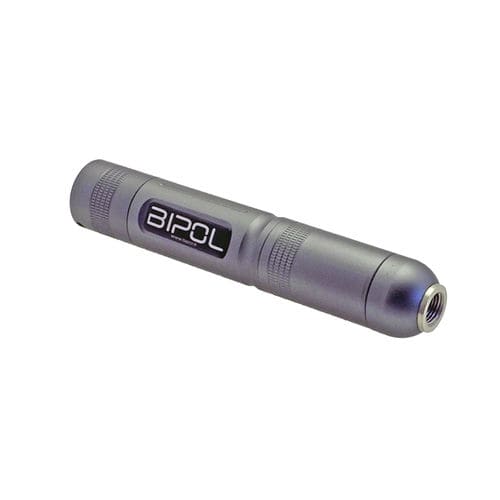

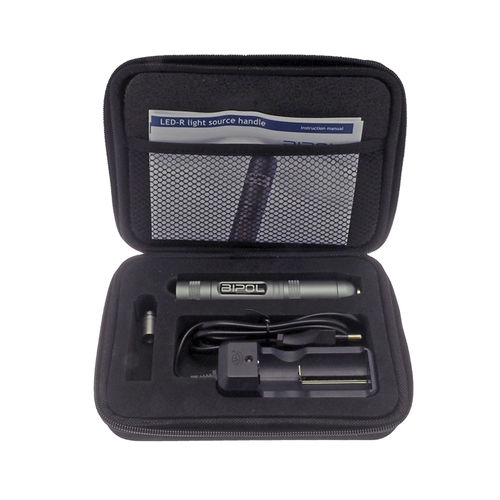

Our LED-R portable high intensity uses the LED technology and delivers a high intensity white light ideal for endoscopic applications. It offers a continuous light intensity adjustment for optimal comfort of use in any situation. LED life is around 50.000 hours under normal use. Supplied with its charger with battery level indicator and rechargeable Li-ion battery (approximately 500 charge cycles) in a pouch with preformed foam.

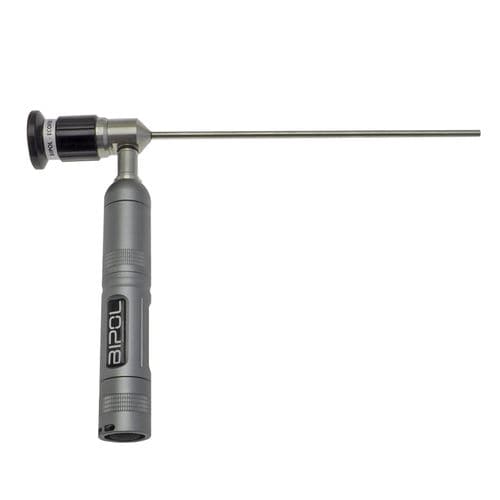

Our LED-R handle has an ACMI connection and is compatible with all endoscopes and fiberscopes of the market with adapters (WOLF – RIWO – OLYMPUS – STORZ – SCHOLLY).

• LED Output
10 Watts
• Illumination
80,000 lux
• Intensity adjustment
Adjustable to 5 levels
• Connection
ACMI
• Dimensions
Ø 24mm x 140mm

• Weight with battery
130 gr
• Battery
Li-Ion 2400 mHa 3.7V -type 18650
• Run time
3-4 hours Loading time about 1 hour
• LED Life
50,000 hours



PARAMETERS

Parameter Name Parameter Value
Illumination technology
LED
Spectrum
white
Other characteristics
portable
Technical applications
for endoscopes
Output power
10 W(0.0136 hp)
