About

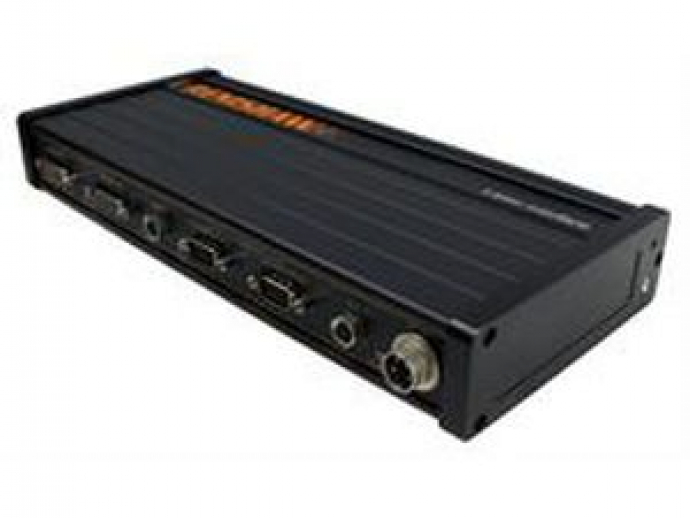

The RLI20-P interfaces a Renishaw laser encoder system with a Panasonic controller (MINAS A5-SERIES). Using the 1 Vpp analogue quadrature signals from the laser encoder the output is passed through a high speed interpolator before being output as incremental position reading in an RS485 format.

Features and benefits

Panasonic capability - directly compatible with Panasonic controller (MINAS A5-SERIES)
Fast communications - high speed internal position update rate (100 MHz)
High accuracy - low SDE contribution (± 0.5 nm)



PARAMETERS

Parameter Name Parameter Value
Options
for encoders
