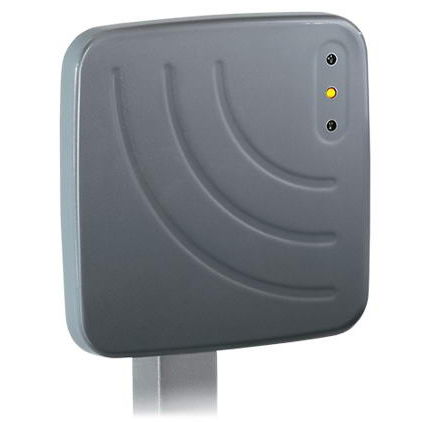

IR-10 Long Range Card Reader for vehicle entry checkpoints
IR-10 long range card reader for outdoor use is designed for reading and interpretation of proximity card identifier and for transferring of identifier to ACS controller. The reader operates with EM-Marin and HID proximity cards (HID ProxCard II, ISO prox II; EM-Marin IL-05ELR, ЕМ4100).
Card reading distance – max 100 cm.

IR-10 reader operates through RS-485 or via Wiegand interface.

IR-10 long range card reader operates as a part of the automotive check-point, which is designed to control the passage of private and company vehicles. It operates together with the barrier controller.

The reader is installed on a mounting arm, which is included in the standard delivery set. The additional equipment includes BH-03 post. The mounting arm and the post are rated at intensive wind force and have anti-corrosive coating.

The post allows mounting readers on different levels to provide comfortable passage for both passenger cars and for heavy trucks.

Up to 8 IR-10 long range card readers can be connected to CT/L04 controller, which operates one barrier. They can be installed on different levels (up to 4 paralleled readers for the entrance and up to 4 paralleled readers for the exit).

Reader operating temperature allows using it outdoors.

Code reading distance:
HID ProxCard II - max 60 cm
EM-Marin IL-05ELR - max 100 cm
EM-Marin ЕМ4100 - max 70 cm


IR-10 long range card reader for outdoor use is designed for reading and interpretation of proximity card identifier and for transferring of identifier to ACS controller.

Parameter Name	Parameter Value
Configuration	embedded
Connector type	wireless
Other characteristics	long-range
