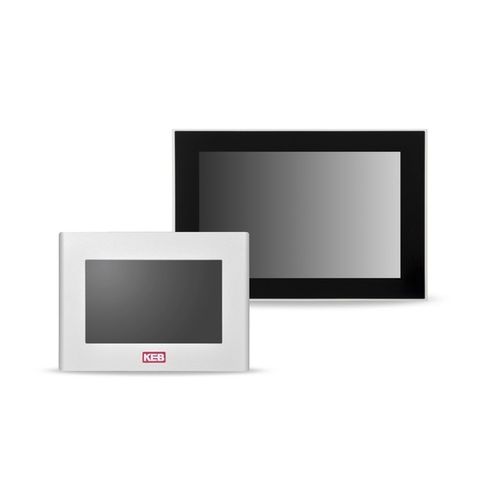

The C6 S14 product family uniquely combines visualization, control and remote maintenance functions, the scope of which depends on the runtime version used. This logic panel is already a true all-rounder and builds the bridge between embedded and IPC technology.

In addition to the resistive and capacitive touch technology as well as a wide range of different display formats with 16 million colors, the C6 S14 impresses with its integrated μUSV, which enables the storage of remanent data in the event of a power failure.

The all-in-one motherboard contains two Ethernet interfaces, a configurable RS232 / 422/485 interface with MPI support, two USB interfaces and can optionally be supplied with isolated CAN interface.

Properties
■ All in One automation solution
■ Synchronous realtime control with EtherCAT Master
■ Micro UPS for secure of non volatile memory
■ Optimised processor power for synchronous motion control, rapid switching and detection of signals
■ Smart system with integrated real-time controller, visualisation and remote monitoring supplemented by a wide range of interfaces (USB, Ethernet, EtherCAT®, CANopen, RS232/485)

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	embedded
Resolution	800 x 480 1024 x 768 800 x 600 1280 x 800 1366 x 768
Processor	ARM Cortex
Other characteristics	all-in-one Ethernet USB RS232 CANopen IP66
Applications	display industrial control data visualization monitoring
Screen size (mm)	7 - 15.6
