• Intelligent, digital electropneumatic positioner with HART communication
• Fast and precise position control of single-acting and double-acting pneumatic rotary and linear actuators
• With integrated or external path/angular detection
• Commissioning, operation, servicing and diagnostics on the local display via the user-friendly software menu or via remote access via EDD-based (Electronic Device Description) or FDT-based (Field Device Tool) transmission
• 2-conductor technology
• Perfect interaction with the VTOP pneumatic extension modules
• Variants with safety functions
• Sustainable operation due to efficient control

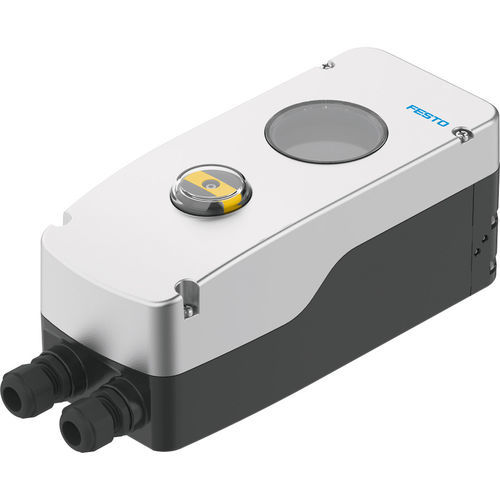

The CMSH is an intelligent, digitalpositioner. It controls the position of aprocess valve that is actuated by apneumatic actuator. Thanks to the largeambient temperature range of–40 ... +80°C and its high degree ofprotection (IP66/67), it can also be usedunder harsh operating conditions. TheCMSH is a 4 ... 20mA loop-powered2-wire device. An additional powersupply is therefore not required.Configuration and operation can beperformed locally on an LC display usingoperating buttons. A HART interfacepermits remote access and integrationinto higher-level systems. There areproduct variants for single- or doubleacting actuators with safety settings (failsafe, fail in place). The product issuitable for attachment to actuators witha mechanical interface in accordancewith VDI/VDE 3845-1 (IEC 60534-6-2) orVDI/VDE 3847-2. The product variantCMSH-S-... has an internal positionsensor for detecting displacement/angle.Alternatively, an external potentiometricposition sensor can be connected to thepositioner on all product variants.

Parameter Name	Parameter Value
Type	electropneumatic
Technology	digital
Product applications	for cylinders
