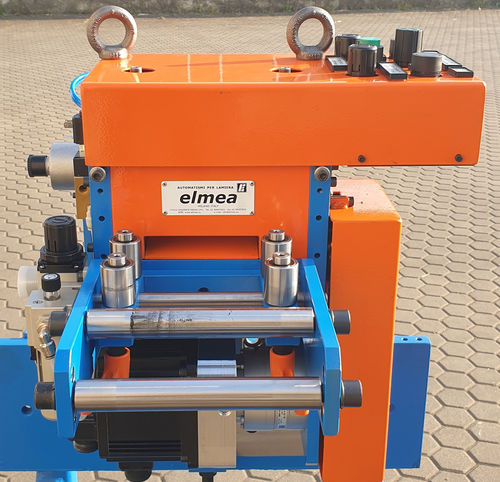

• The Electronic feeder model MA 126 is constructed in the following tape widths:100 mm – 200 mm – 300 mm – 400 mm – 500 mm
• The Electronic feeder model MA 126 can feed sheet metal with a maximum thickness of 2.5 mm
• The Electronic feeder model MA 126 is equipped with a ground, tempered steel rollers with a hardness of 62 HRC
• The diameter of the rollers is 60 mm
• On request, we can carry out chrome-plating treatment on rollers, ideal for use on sheet metal in stainless steel, brass, aluminium and copper.
• The Electronic feeder model MA 126 is equipped with a manual lift to align the tape passage surface to the height of the press +/- 50 mm. On request +/- 100 mm
• The Electronic feeder model MA 126 has a feeding speed of 115 m/1’ and implements up to 120 strikes per minute with a maximum pitch of 200 mm
• The Electronic feeder model MA 126 is activated by a brushless motor by DELTA ELECTRONICS and a planetary gear by NIDEC SHIMPO
• Motorised lift to align the tape passage surface to the height of the press
• Chrome-plated rollers ideal for fragile tape such as aluminium.
• Ribbed rollers ideal for thick tapes
• Electronic cams kit
• Touch-Panel and mobile keypad for manual controls within reach
• Modern wi-fi for remote support with remote connection useful to speed up diagnostics and interventions in the event of machine malfunctions. Less production downtime and contained costs of on-site technical support
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
roller
|
| Operating mode |
electronically controlled
|
| Product applications |
for metal
|
