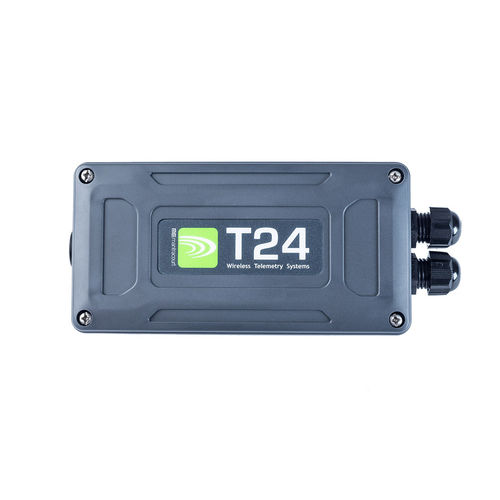

The largest of the T24 wireless transmitter enclosures, the T24-ACM offers high performance wireless sensor transmitter measurement for strain gauge, current, voltage, temperature, pulse and potentiometer.

Click here to view & download associated free software.

Using Mantracourt’s proprietary 2.4 Ghz wireless telemetry electronics, this system provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely.

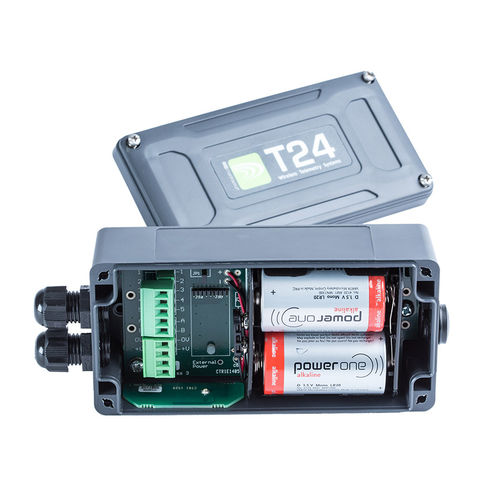

Featuring a compartment for a pair of alkaline ‘D’ cells, the T24-ACM also has a regulator circuitry for an external power supply. The batteries can also be used to provide power in case of external supply failure. For easy wireless sensing, the unit provides connections via the 2 part screw terminals and provide environmental sealing to IP67.

The T24-ACM high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.

The wireless sensor transmitter is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.

The T24 offers a wireless range of up to 800 m (2,600 ft) in open field site.

Alternative IP rated enclosures are available to suit a range of applications and environments. View our Enclosure Comparison Sheet to find the right solution.
