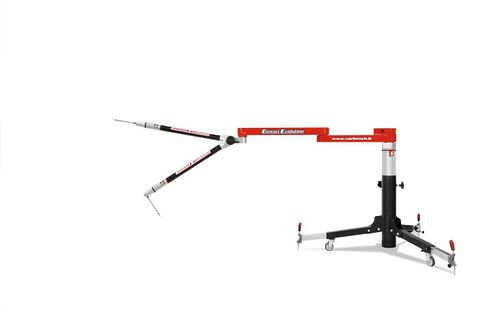

Evolution measuring system - unique in the world of its kind - represents an electronic system projected into future engineering. Born from the basic principles of a calibration machine it carries a huge developing potential and further future applications. We recently added a feature to allow measurements of external panels of vehicle (wheels on the floor!) with mechanics mounted. Thanks to its sophisticated and advanced software and hardware it can guarantee maximum precision of measurements (+/- 0,5 mm on a length spread of 5.4 meters).

KEY FEATURES

• Lightweight arm: 2.7m for a total radius of 5.4m
• Aluminium & Carbon fibre construction
• 5 Axes movement
• Bluetooth communication
• Guided and Talking system
• Battery on board, cable free
• Mobile telescopic tripod adjustable in height
• Diagnosis save, print-out or e-mail
• Can be used with any bench or two-post lift
• No Adapters and/or Extensions needed
• Can be used on the bench in combination with jigs
• Each articulation has 4.000 positions

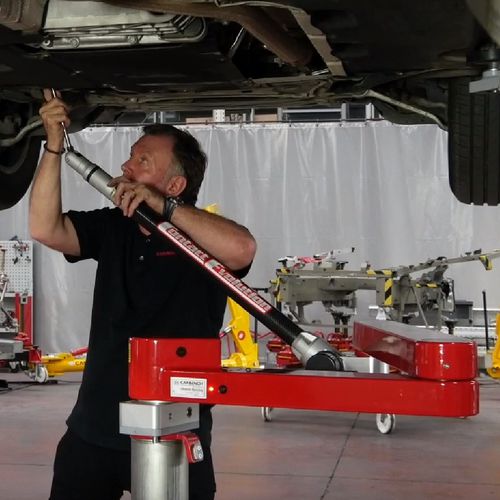

On Ground Measuring

Car Bench Contact Evolution latest Measuring software enables the operator to quickly measure a vehicle to properly diagnose and identify damages without lifting the vehicle or putting it on a Jig Bench. This process ensures a Correct First Inspection reducing additional estimates. The process will take maximum 7 minutes.

The global insurance market today does not allow much time for bodyshops to carry out a correct estimate due to the long preparation time needed.

Parameter Name	Parameter Value
Technology	electronic contact
Applications	for the automotive industry
Type	measurement
