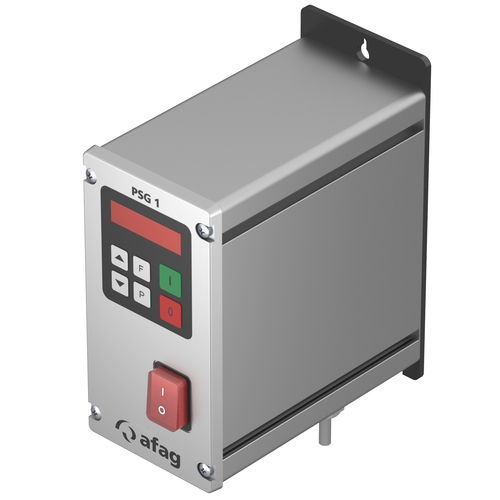

Piezoelectic control device PSG1
•Only suitable for operating HLF-P linear feeders
•Generates a mains frequency-independent, adjustable drive frequency
•Allows constant conveyor capacity in case of grid fluctuations through internal compensation
PSG1
Operating temperature0 - 45 °C
Bearing temperature-10-80 °C

TypePSG1
Order number50211833
External target value preset0 - 20 mA (DC)
Nominal output currentpp/100 mA
Output frequency5 - 300 Hz (preset: 75 ■=■ 300) Hz
Frequency50/60 Hz
Input voltage230 VAC
Output voltage-30- 150V
Control inputContact or 24 VDC
Net weight2.5 kg
Recommended pre-fuse10 A, Type D MCB
Protection typeIP54

Parameter Name	Parameter Value
Type	electromagnetic vibrating
