About

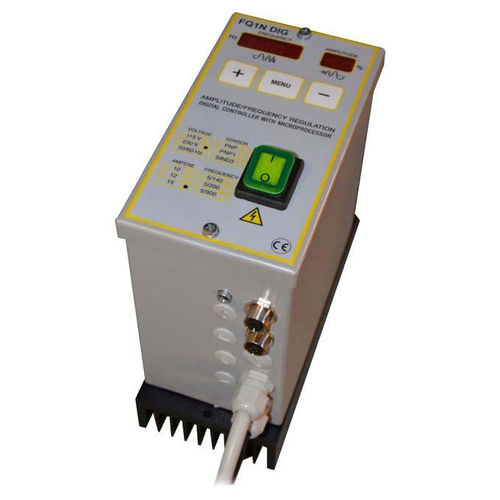

Microprocessor digital professional controller with visualized frequency and amplitude – Delay 20 sec max On/Off vibrator with sensor PNP or relay contact – Automatic input 0/10V-0/20mA – Status relay – 2° PNP sensor – EV air blow – Alarm absence pieces – Lamp alarm.
General Characteristics
Voltage (110V) 230V, 50/60 Hz
Input ON/OFF
Soft/Fast ramp (0 ÷ 5 sec.)
Digital Regulation amplitude/frequency min/max(5-140Hz)
Digital menu
Line input with schuko plug
Vibrator output with connector
Delay EV air blow (0 ÷ 2 sec.)
Alarm absence pieces (0 ÷ 180 sec.)
Lamp alarm (24Vcc).
Options
Personalized label
Connector for vibrator
SW custom.
Applications
Digital regulation of linear and bowl feeder till 10/12/15 Amps – The FQ1NDIG allows optimizing operation of the vibratory feeder by searching for its resonance frequency (max performance) thereby eliminating its lengthy and difficult mechanical calibration – Qualification input for multiple electromagnetic system (linear – blow feeder – hopper).
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
