About
Designed to function and survive in harsh environments, providing reliable performance in many long life applications.
Advantages of use:
» Electrically remotely actuated.
» Reduced power consumption from engine.
» Extended pump life.
» Lower operator cost.
» Simple installation.
» Operator convenience/safety.
» Cold weather starting.

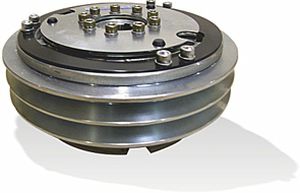

These are flange mounted, normally a two piece construction clutch typically mounted directly on to the pumps.
Solid forged rotor:
A one piece solid forged rotor means no chance of internal parts separation. Our rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
Different coil voltages available:
Although 12 volt is the most common, 24 volts can also be made available. Depending upon the quantity, other specialty voltages can be made.
High temperature, longer life grease:
All models include our special long life grease which has shown a significant improvement in life over other standard high temperature greases.
E-coating:
Where possible all parts in the clutch are e-coated to give maximum corrosion protection.
High temperature epoxy coil:
To help prevent failure from both vibration and outside contaminants, all coils are sealed in the coil shell with a high temperature epoxy coating.
Forged machined pulley:
All models in this section use a heavy duty machined pulley. A stronger pulley resists damage due to abusive environments.
Technical specification catalogue of complete range of electromagnetic clutches and brakes can be viewed via: https://www.jbj.co.uk/electromagnetic-clutches.html
Catalogue also available on Direct Industry via the 'view catalogue' link below.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Operation |
electromagnetic
|
| Applications |
|
| Other characteristics |
|
| Torque (Nm) |
|
| Rotational speed (rpm) |
200 - 4000
|
