About
Table lift
Table rotation
Table tilting
Designed for manual welding
Positioner does not require anchoring
The welding positioner can be customized according to requirements such as the size, shape, and design of the clamping table, the use, and design of the welding fixture, and the equipment of the positioner with a control system for position programming.
The dimensions of the welding positioner may vary according to the specific configuration.

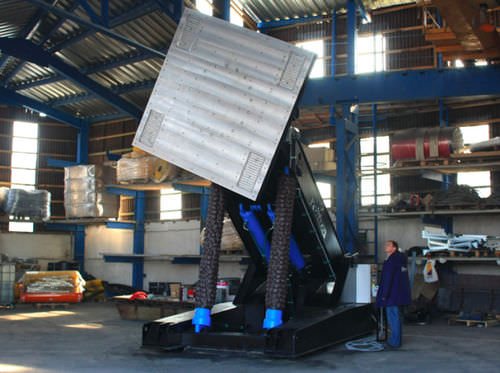

Rotation of the arm and table by means of a radial-axial bearing driven by an electric motor, lifting of the arm by hydraulic cylinders – drive of cylinders from a fixed hydraulic unit driven by an electric motor.
The positioner does not require anchoring to the floor or to a steel plate.
High reliability
Minimal maintenance
Work comfort
Employee safety
Reduced welding costt
Increased efficiency
Investment with a quick return on production
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electro-hydraulic
|
| Orientation |
linear
|
| Number of axes |
3-axis
|
| Technology |
pantographic
|
| Payload (kg) |
800 - 800
|
| Rotational speed (rpm) |
0 - 15
|
