About

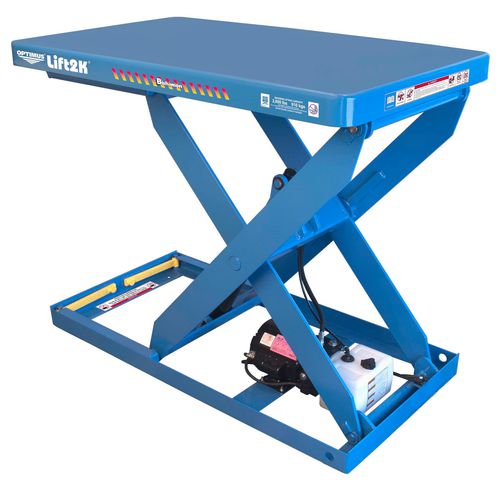

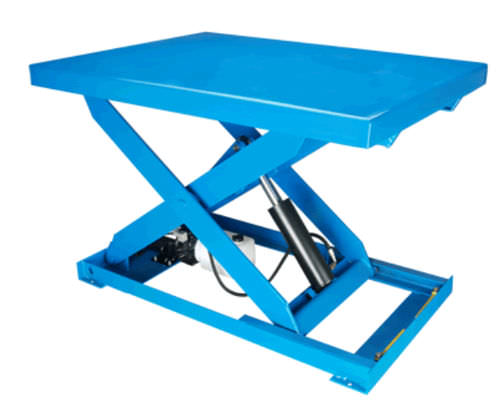

OPTIMUS® , LK-Series lift tables are highly engineered for quality and worker safety. These scissor lift, work positioners set the standard by providing unparalleled performance and value. They improve worker productivity and safety by eliminating unproductive lifting, bending and stretching that ultimately lead to worker fatigue and injuries.
• LIFTING CAPACITIES – Hydraulic Lift Tables In 2,000, 3,000 & 5,000 Lb. Capacities
• PLATFORM – Fixed and Rotating Platforms
• ROUNDED CORNERS – Intelligent Design with Rounded Platform Corners
• STABILITY – Entrapped Scissor Rollers for Added Stability.
• SAFETY – Hinged Maintenance Bars Powder Coated Yellow for Safety
• ON DEMAND – Standard Models Ship in 48 hours
Optimus Design Features
• Meets or exceeds ANSI MH29.1-2012 “Safety Requirements for Industrial Scissor Lifts”
• Meets or exceeds industry safety clearances
• Flow limiting safety valve at cylinder
• Pressure compensated flow control at power unit
• All pivot points have self-lubricating, maintenance free bushings
• Contoured scissor legs and large torque tube maximize stiffness and stability
• Unitized power unit with innovative easy-view hydraulic reservoir
• Intuitive and user friendly plug & play controls
• Durable powder coated finish
• Clean, accessible maintenance friendly design
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
scissor
|
| Operation |
electro-hydarulic
|
| Type |
stationary
|
| Other characteristics |
rotating
|
| Capacity |
2,000 lb, 3,000 lb, 5,000 lb (907.2 kg)
|
| Lowered height |
Max.: 12 inMin.: 8 in
|
| Lifting height |
Max.: 51 inMin.: 39 in
|
| Stroke (mm) |
30 - 34
|
| Tray length |
Max.: 84 inMin.: 48 in
|
| Tray width |
Max.: 48 inMin.: 28 in
|
| Lift time |
24 s, 25 s, 50 s
|
| Weight (kg) |
Max.: 1,075 lb (487.61
|
