About

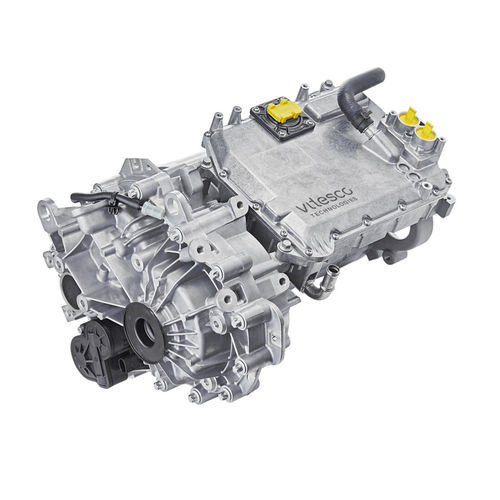

The high voltage axle drive is a highly integrated electric drive system. It consists of a permanent-magnet synchronus e-motor, an inverter and a reducer. The axle drive is compact in size, has a low weight and is a all-in-one solution, thus reducing integration efforts for the vehicle manufacturer. The axle drive has been developed for high volume market electric vehicles (EVs).
FACTS & BENEFITS
Integration of motor, inverter and reducer
High power density for a compact packaging
No connectors, no cables between motor and inverter
Reduced efforts for integration, sourcing and validation
TECHNICAL INFORMATION
E-motor: permanent-magnet synchronous machine
Max. torque: 2.900 Nm peak
Max. Power: 150 kW
Continuous power: 50 kW
Weight: 76 kg
Dimension (LxHxW): 400 x 350 x 550 mm
Electric parking lock included
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Product applications |
for electric vehicles
|
| Type |
electric
|
