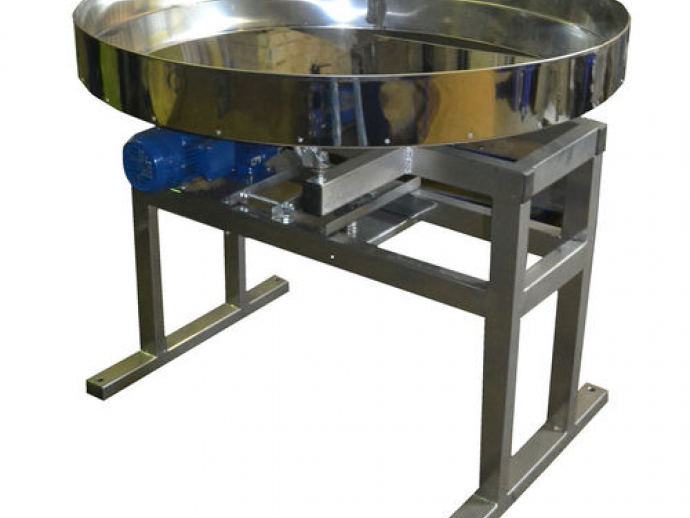

Electric rotary table СN-1

Electric rotary table СN-1

Electric rotary table СN-1

About


The cumulative rotary table is an auxiliary device for the accumulation of packs before group packaging or other tasks. The storage disk made of stainless material, which allows the use of the table in the food industry.

TECHNICAL PARAMETERS
Pneumosupply–
Voltage power supply, V/Hz - 380/50
Power, kW - 0,4
Dimensions (LxWxH), not more than, mm - 1100/1100/800
Machine weight, not more than, kg - 90
Disc Diameter (max.), mm - 1000
Rotation speed, rpm - 7
Depth, mm - 100
Sensor of hopper filling - yes



PARAMETERS

Parameter Name Parameter Value
Operation
electric
Configuration
horizontal
Applications
  • for conveyors
  • for packaging lines
Other characteristics
rotating
Diameter (mm)
1000 - 1000
