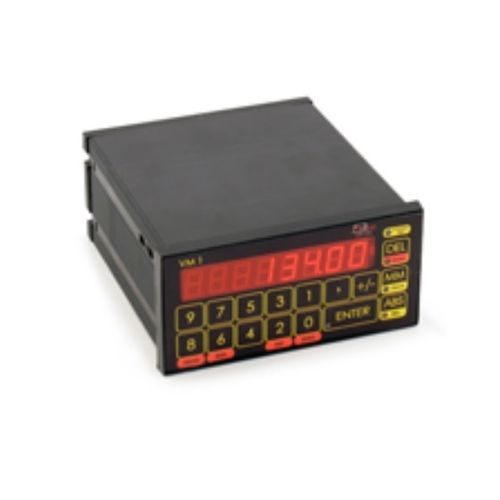

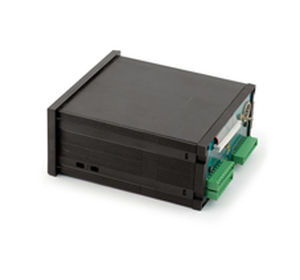

It has the same dimensional and technical characteristics of the VM1 readout. It is a single-axle, very versatile positioner, which can be programmed also by selflearning in the VM1-C model while the VM1-P model can be programmed by the keyboard. It has 200 memories. It gives step outputs for driving alternating current motors or a +/- 10 V analogue output for controlling movements. It can carry out positioning by recovering the clearance, it allows the repetition of the step n. times. It can use customizable software for special applications.

Optional
•Customizable configurations
•Metal box for outside model

Functions and features
•DRO on display 0.56 ", 7 digits plus sign
•Waterproof keyboard
•Conversion mm/inch
•Dual counter absolute/incremental
•Zeroing and setting quota
•Input signal zero scale
•VM1P (positioner)
•Memory for 200 or absolute positions
•Possibility of subdividing the memory up to 50 programs
•Possibility to repeat the same step many times, up to 99
•Possibility to set parameters of approaching
•Solid state output for the control of three-phase motors or solenoids
•Analogic output for piloting drives
•Approaching curve adjustable
•Power supply 220 Vac,
•Services Voltage 24 Vcc,
•Analogic power supply +10 Vdc, -10 Vdc
•VM1C (cams simulator)
•Memory for 200 positions divided into 20 groups of 8 shares each
•Output signal for 8 positions (24 Vdc max 50mA)

Parameter Name	Parameter Value
Type	electric
Number of axes	1-axis
Product applications	for coordinate measuring machines
