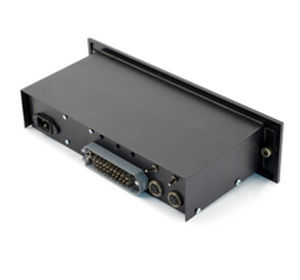

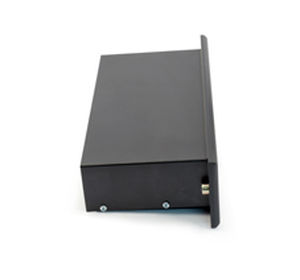

Two-axis positioner suitable for marble cutting machines. It gives step outputs for driving alternating current motors, solenoid valves, etc. It is possible to set the blade thickness, visualizing it on the proper display. It carries out fi xed step or sequential programmes. It is available in built-in model.

•DRO on display: 1 ", 7 digits plus sign
•Waterproof keyboard
•Software dedicated to the bridge machines for cutting marble
•Encoder input for shift- axis (movement of the bridge)
•Encoder input for decscent-axis (lowering of the blade)
•Solid-state outputs for control of the machine (24V, max 50 mA)
•Possibility to include programs of both shifting and descent
•Shifting program execution in sequence or fixed repettion of the same step
•Management of the blade thickness
•Management of partial and differentiable descent between cutting forward and cutting back

Parameter Name	Parameter Value
Type	electric
Number of axes	dual-axis
Product applications	for valves
