The axes can work in synchronized motion and combined together to create a complete programmable tooling system.


Key Benefits

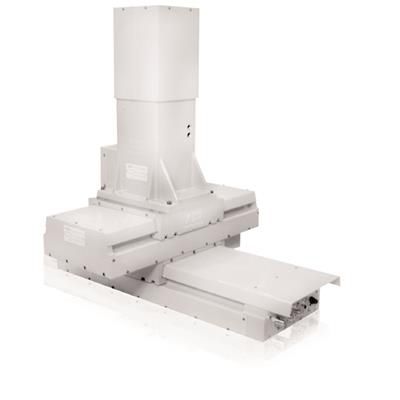

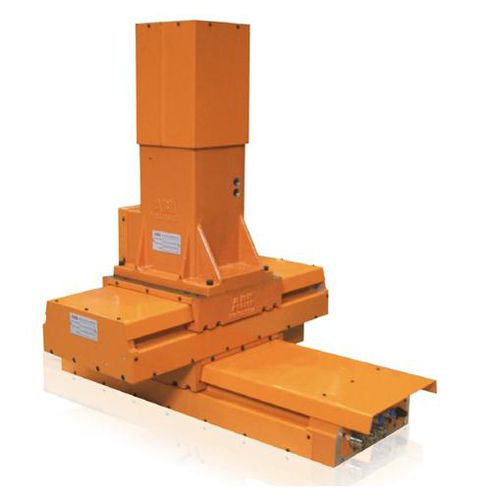

Compact 3 axis programmable unit

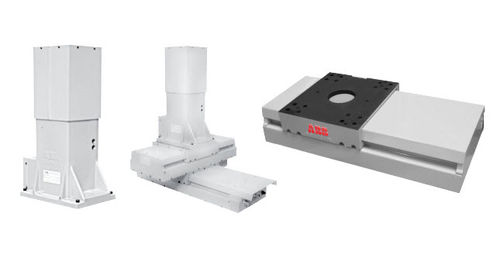

Modulary 1 to 3 axis
Protected by design against sparks
Integrated cabling & piping for actuator
High repeatability & stiffness
Either driven by ABB IRC5 robot controller or PLC
Robot like programming using user-friendly interface
IP54
Patented technology

Applications
Flexible tooling
Material handling & positioning

Base package
IRPLP
Documentation

Options
SMB box
Robot Cables 5, 10, 15 m
Modular 1 to 3 axis

Parameter Name	Parameter Value
Type	electric
Orientation	linear
Number of axes	3-axis
Product applications	parts
Other characteristics	compact
Payload (kg)	30 - 30
