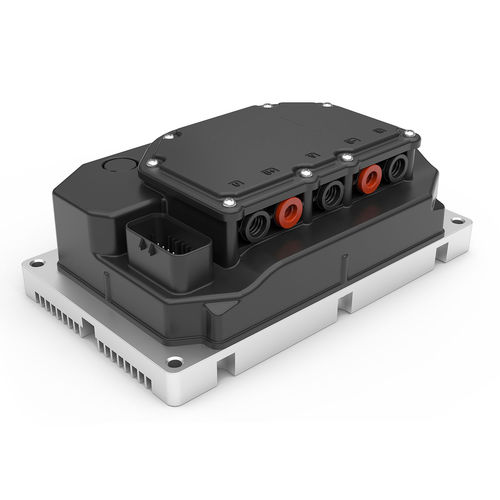

Electric Motorcycle motor controller-D03 frame
Brand: GTAKE
Certificate: CE, RoHS
Model: KTZ(KYS)07H28ZMA**
Applicable motor: PMSM/ACIM
Input voltage range: 40V DC ~ 90V DC
Peak current: 280 A/3s
Low-Voltage range: 6 ~ 16V DC

Features

Power Supply
Rated input voltage: 48V / 72V DC
Input voltage range: 40V DC ~ 90V DC
Auxiliary low-voltage power supply: 6V DC ~ 16V DC

Output Data (U, V, W)
Output peak current: 280 A
Duration: 3 s
Output frequency range: 0~600Hz

Applicable Motor
Type: Synchronous / asynchronous motor
Position sensor: Magnetic encode (TLE5012B E1000 or AS5047D)
Temperature sensor type: KTY84/ PT1000 / NTC
Temperature sensor channel: 1

CAN Communication
Terminal resister: Optional
Protocol: Customized

Mechanical parameter
Weight: ~2kg
Dimension: W×H×D(mm):223×134×77

Ambient
Vibration: GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011
Humidity: Relative humidity 5% - 95 %. No condensation
Ambient temperature: -40ºC - 65 ºC
Altitude: 0 - 2,000 m
Rated output current derated 1% every 100 m above 1,000 m
Storage temperature: -40 - +85 ºC
Efficiency: ≥98 % at the rated
IP grade: IP 67
Cooling method: Natural cooling

GTAKE VS Other brands

Performance |Common brands |GTAKE
Applicable motors |Synchronous motors|Asynchronous /synchronous motors
Power consumption *1|0.133 kWh/km|15.7 L / 100 km
Peak torque *2|45 Nm|38 Nm
Mileage with 1 passenger *3|91 km|100 km
Mileage with 2 passengers *4|65 km|71 km
Acceleration|0.5 m/s2|1.11 m/s2
Slope distance *5|> 20 cm|< 8 cm
IP rating|IP 65|IP 67
Ambient temperature |-10-40ºC|-40-65ºC
Customized features |Unprocurable or no experience |Procurable with rich experience

Parameter Name	Parameter Value
AC/DC	DC
Motor type	for synchronous motor asynchronous
Applications	for electric motocycle motor
Input voltage	Max.: 90 VMin.: 40 V
Current (A)	0 - 280
