Electric manipulator Vac-U-Grip Panels

Electric manipulator Vac-U-Grip Panels

Electric manipulator Vac-U-Grip Panels

About


WHAT IS POSSIBLE TO HANDLE
PRODUCT: panels/sheets with smooth and non-porous surface
CONSISTENCY: rigid, not deformable (no bending products allowed)
DIMENSIONS: minimum: mm 800 x 300 - thickness from mm. 5 to mm. 30
maximum: mm 4800 x 2100 - thickness from mm. 5 to mm. 30
WEIGHT: max. kg. 250

N.B.: for products with different characteristics evaluation by our technical office
is necessary

ERGONOMICS:
Thanks to the INDEVA® automatic balancing system, up/down moves and load
positioning are extremely smooth, fast and precise: with an almost zero effort (about 300
gr) , the operator can easily and ergonomically lift panels up to 250 kg.
4 standard handle sizes are avaliable in order to suit different applications and always grant
ergonomic arm and hands position.

SAFETY:
• The equipment grips the load and an acoustic signal indicates that the grip is correct
• The system does not allow the load to be lifted if the required vacuum level is not
reached (vacuum switch interfaced with the manipulator)
• The correct vacuum level is also monitored by an on-board vacuum gauge (green and
red areas)
• In the event of a vacuum level drop while the load is suspended, the system activates
an acoustic signal and the vacuum gauge indicates the vacuum level in real time
• In the event of compressed air, decrease, the system activates an acoustic signal

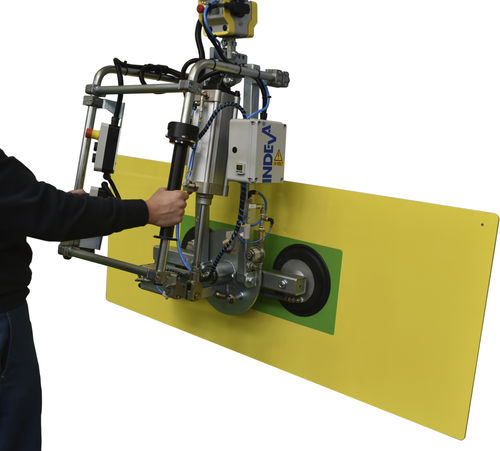

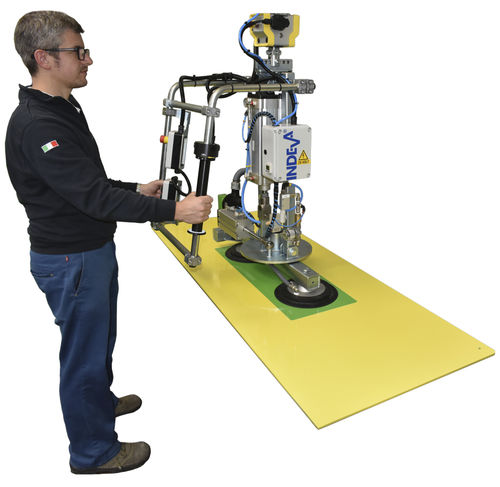

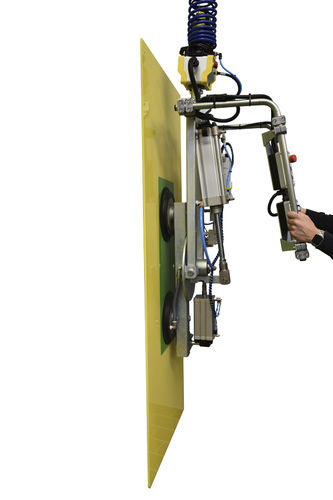

3 Models are available: Pick&Place, Tilting , Tilting & Rotation



PARAMETERS

Parameter Name Parameter Value
Drive type
electric
Gripping device
with suction cup
Applications
  • loading
  • for lifting
  • positioning
  • for gripping
  • sheet metal
  • for panel

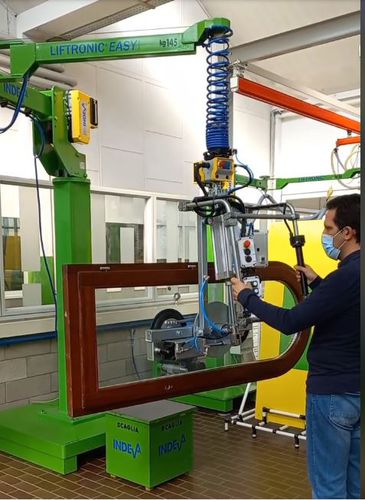

  • for windows and doors
  • for sheet metal
  • for solar panels
  • for large glass panels
  • for panels
  • steel sheet metal
  • for metal panels
Configuration

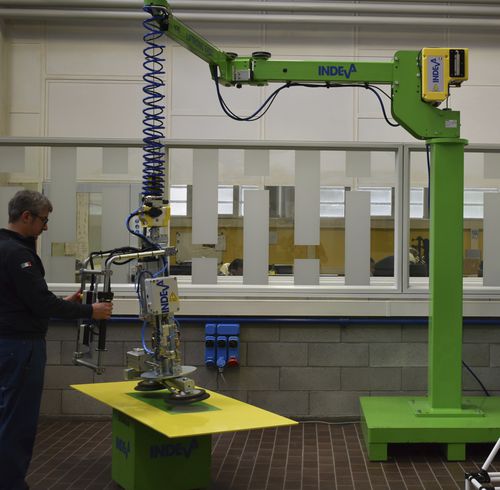

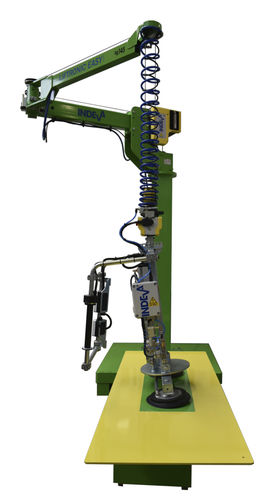

jib-crane
Other characteristics
  • ergonomic
  • self-balancing
  • pick-and-place
  • with electronic control
  • rotation 0°- 90°
  • articulated-arm
  • intelligent
  • floor-standing
  • rope
Domain
  • industrial
  • for the automotive industry
  • for the steel industry
  • semi-automatic
  • for the aluminum industry
  • for glass
Carrying capacity
Max.: 250 kg (551.2 lb)Min.: 5 kg (11 lb)
Working radius
Max.: 4,000 mm (157 in)Min.: 2,500 mm (98 in)
