About
Electric Mechlift Pro™ is a versatile moment absorbing lifting unit that is easily adapted to many types of handling solutions. It can be fitted with standardized or customized gripper tools, and with accessories such as rotation units, brake units, programmable stop positions, and much more.

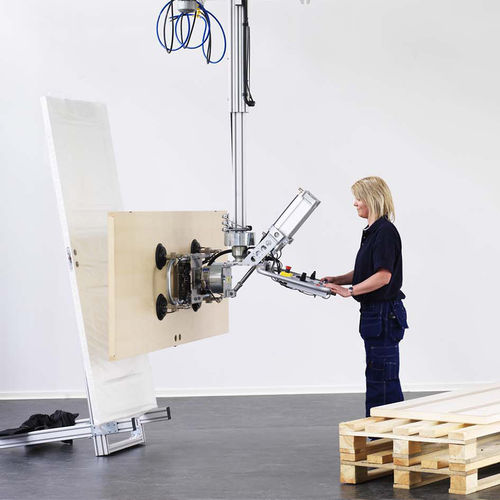

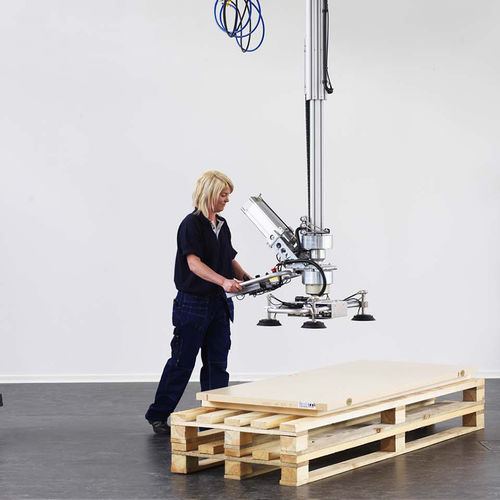

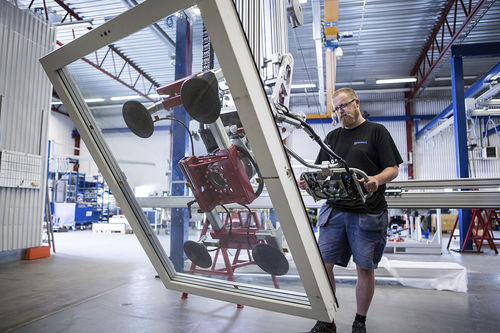

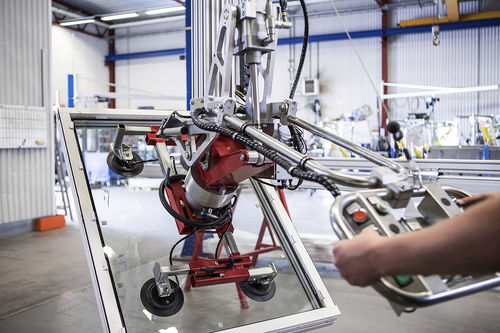

Versatility makes Mechlift Pro a professional universal lifter with a wide range of applications. Typical objects handled with electric Mechlift Pro are panels, carpet rolls, tanks, doors, windows, cable reels, vehicle doors, sun roofs, car seats, windscreens and car bonnets.
Several configurations

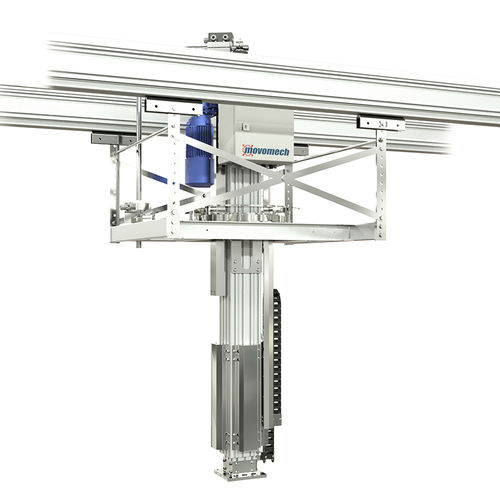

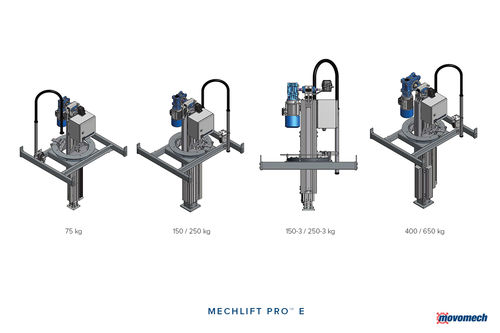

Electric Mechlift Pro is built up from modules and can be supplied in many different configurations. It can also be integrated with Powerdrive drive units for driven lateral transportation in the rail system, or with a Mechbelt linear unit for automated handling of the type “pick and place”.
Moment absorbing
Electric Mechlift Pro is built up from telescopic aluminium profiles that are anodized and therefore completely maintenance-free. The moment absorbing sliding blocks (version 400/650 kg has moment absorbing wheels) enable loading outside the lifter’s vertical lifting axis.
Encoder
As an option, electric Mechlift Pro may be equipped with an encoder that reads the shaft in the spindle limit switch. This makes it possible to set a lower stop position, as well as a further two stop/start positions along the stroke length. The positions are stored in a built-in memory in the frequency converter and are not erased in case of power cuts.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Drive type |
electric
|
| Gripping device |
|
| Applications |
|
| Configuration |
|
| Other characteristics |
|
| Domain |
|
| Carrying capacity |
Min.: 0 kg (0 lb)75 kg, 150 kg, 250 kg, 400 kg, 650 kg (165.3 lb)
|
