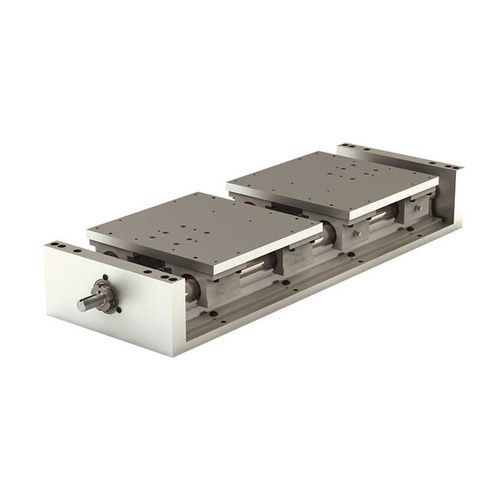

Simplicity® Linear Slide Technology handles heavy loads and excels in harsh, contaminated environments. SC2RPS Plain Bearing Linear Slide Assemblies are equipped with Frelon bearings that are self-lubricating (no external lubricants), handle a wide temperature range (-400°F / 400°F) (-240°C / 240°C), and tolerate and dampen vibration. Features include:

Rail Mounted & Plate Supported with Two Self-Centering Carriages - Ball Screw Driven (supported on both ends)

-Rail shaft diameters from 12.7mm (0.5 in) to 50.8 mm (2.0 in)
-Bearing materials available include FrelonGOLD®, Frelon® J, and ball bearing
-Shaft materials available include alloy steel, anodized aluminum, 440 stainless steel, and chrome plated 303 stainless steel

Standard components include:

(2) Aluminum alloy mounting plates
(4) Simplicity pillow block assemblies
(2) Alloy steel shafting
(2) Aluminum alloy support rails
(1) Rolled ball screw and ball nut assembly
(2) Aluminum alloy end plates

Parameter Name	Parameter Value
Operation	electric
Type	ball screw
Other characteristics	aluminum standard stainless steel
Stroke (mm)	0 - 2440
Speed (mm/s)	0 - 460
Force (N)	0 - 83
