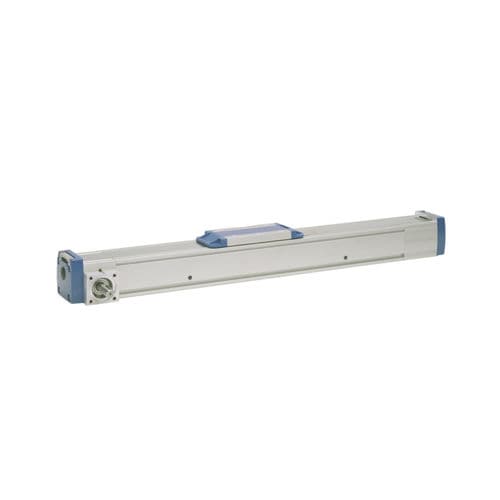

MG-B (Movoparts): Slide Guided, Belt Driven Linear Units
Thomson's Movopart® MG-B rodless actuator, slide guided versions are designed to move light loads at medium application speeds with low friction for precise positioning. With guided linear motion through a belt drive and a saddle that rides along the top of the actuator to carry the load, this design is ideal for industrial or material handling applications.

The self-adjusting, Cover Band Stretcher extends the life of the cover band, which protects belt and guide from contaminants.

MG-B Feature Highlights
• Modular mounting feet
• Limit switch brackets mount to T-slot
• Self-adjusting stainless steel cover band
• Multiple saddle sizes
• Single and dual nut support
• Load holding brake required
• High moment loading
• Patented internal self-adjusting prism slide guides
• Can be installed in all directions
• Easy T-slot mounting
• Wash down protection
• Long travel
• High speed

Parameter Name	Parameter Value
Operation	electric
Type	belt-driven
Other characteristics	guided high-speed
Stroke (mm)	5000 - 7000
Speed (mm/s)	5000 - 5000
Force (N)	200 - 3005
