Electric linear unit DLZPVI

Electric linear unit DLZPVI

Electric linear unit DLZPVI

About

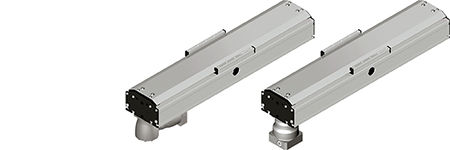

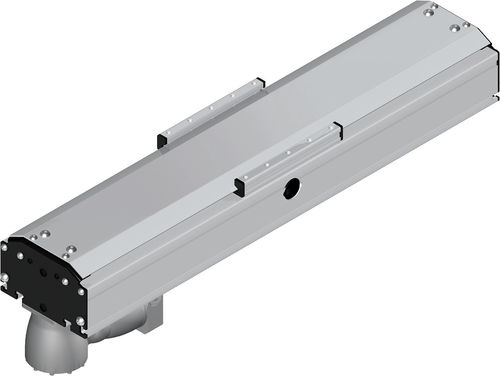

This unit consists of a rectangular aluminium profile with 2 integrated roller guides. The carriage is moved by a belt drive. On the drive side the pulley is beared on the shaft of a planetary gear. Belt tension can be readjusted by a simple screw adjustment at the opposite side of the drive. A special curved aluminium sheet is covering the carriage side. There is only a small gap between carriage and aluminium sheet. Because of its special design it is possible to drive the carriage over the pulley areas. This fact is making the unit very compact. The cover profile can be adjusted according to the mounting position.



PARAMETERS

Parameter Name Parameter Value
Operation
electric
Type
  • profile
  • timing belt
Other characteristics
aluminum
